Can Solar Cable Be Buried Underground?

For the broader sequence-standard, conductor size, voltage drop, environment and connector selection-use the solar DC cable selection guide. This article stays focused on the narrower question: what evidence and route design are needed before a PV cable is placed below ground?

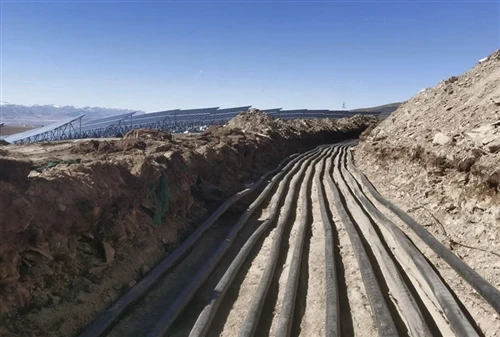

That distinction matters in solar farms, carports, ground-mounted C&I systems and battery-linked PV projects. Underground routes may be exposed to persistent moisture, flooding, soil chemicals, rocks, rodents, crushing, excavation and heat accumulation. A cable that performs well on a rooftop may still be the wrong product for direct contact with soil.

Direct Burial, Conduit and Underground Duct: What Is the Difference?

"Underground" describes the location, not one installation method. The route can use cable in direct contact with soil, cable inside a raceway or duct, or a project-specific protected trench system. The cable evidence and mechanical design must match the chosen method.

Conduit is not a promise of a permanently dry environment. Water can enter through condensation, joints or low points, so the designer must select cable and raceway components for the real moisture condition and provide drainage or sealing where the approved system requires it.

Why Outdoor, Wet and Direct-Burial Ratings Are Not Interchangeable

Cable descriptions often bundle several performance claims, but each answers a different question. UV or sunlight resistance concerns exposure to solar radiation. Wet-location suitability concerns moisture. Direct-burial suitability concerns the additional stresses associated with installation in earth. One attribute should not be used as evidence for another.

If a project team is still deciding whether a dedicated PV cable is necessary, first review PV cable vs normal cable. General-purpose wire should not be substituted simply because its conductor size appears similar.

In the UL certification context, the UL Wire and Cable Application Guide treats direct-burial suitability as a distinct evaluated attribute. When applicable, products may carry wording such as "FOR DIRECT BURIAL," "DIRECT BURIAL," "DIR BUR" or "DIR BURIAL." Wet-location and sunlight-resistance attributes are identified separately. For other markets and certification schemes, use the equivalent product-specific record and marking required by the project.

Eight Checks Before Selecting an Underground Solar Cable

1. Confirm the Destination-Market Rules and Project Specification

Start with the country, locally adopted electrical rules, contract specification, utility requirements and the authority or engineer responsible for acceptance. These determine the permitted wiring method, mechanical protection, route separation, warning system, inspection points and burial depth. A depth copied from another country, code edition or project is not a safe design input.

2. Verify the Exact Cable, Not Only the Product Family

Request the datasheet, certificate or listing record, controlled product designation and manufacturer installation instructions for the exact model and conductor size offered. A supplier's catalog category or a generic "solar cable" description is not enough evidence for an underground route.

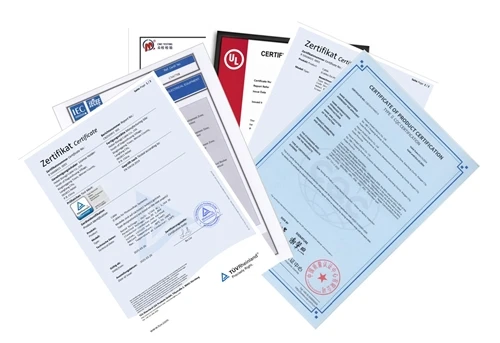

Use the documented process in how to verify a solar cable certificate to match the legal holder, cable designation, covered size, standard and current status before approval.

 3. Find Explicit Direct-Burial Evidence

For a direct-burial route, look for an explicit direct-burial evaluation, listing, certificate scope, marking or manufacturer statement that applies to the exact product and market. Do not convert "outdoor," "weather resistant," "water resistant," "wet location," "PV cable" or a test-mark logo into a direct-burial claim.

4. Define Water and Drainage Conditions

Record expected groundwater, seasonal flooding, irrigation, condensation, drainage and low points. Ask whether the route is intermittently wet, continuously wet or potentially submerged. Cable, joints, entries and raceway components must be suitable for the defined condition; the project should not rely on the assumption that an underground conduit stays dry.

 5. Assess Soil and Biological Exposure

Provide soil type, pH or chemical contamination where relevant, backfill material, agricultural chemicals, salt exposure, termites or rodents. Sharp rock and uncontrolled backfill can damage a sheath during installation, while aggressive soil or standing water can shorten service life if the selected construction is not suitable.

 6. Design Mechanical Protection and Route Transitions

Evaluate vehicle loading, future excavation, crossings, foundation entries, vertical risers and locations where cable leaves the ground. The design may require ducts, sleeves, guards, slabs, approved backfill, marker tape or additional protection even when the cable itself is direct-burial rated. Record the final route for future maintenance.

7. Keep Connectors and Splices in Approved, Accessible Locations

Do not bury a field connector or splice merely because the cable may be buried. The connector, enclosure and jointing method need their own environmental and installation approval. Where possible, place connection points in accessible, inspectable locations and protect the cable-to-equipment transition.

Before specifying a field connection, check solar cable and connector compatibility for conductor range, insulation diameter, contact, crimp tooling and mating requirements.

 8. Recalculate Electrical and Thermal Performance

Underground installation changes heat dissipation. Conduit fill, cable grouping, soil thermal conditions, ambient temperature, route length and current can affect ampacity and voltage drop. Complete the project calculation after the route is defined; selecting a larger conductor only by habit is not a substitute for engineering.

For the focused conductor-size comparison, see 4mm² vs 6mm² solar cable. Apply the project calculation and applicable correction factors before converting that comparison into a purchase specification.

Can H1Z2Z2-K Solar Cable Be Buried?

Not on the designation alone. H1Z2Z2-K identifies a PV cable type associated with EN 50618, but the designation by itself should not be treated as universal authorization for direct contact with soil. An exact product may be permitted in a protected underground route, conduit or other specified installation while direct burial requires different or additional evidence.

When reviewing a proposed model, compare its verified documents and installation instructions with the EN 50618 H1Z2Z2-K solar cable project requirements. Ask the supplier to state clearly whether the offer is for above-ground outdoor use, protected underground use, conduit use or direct burial.

Can UL 4703 PV Wire Be Direct Buried?

Some PV Wire products may be evaluated for direct burial, but the standard name or "PV Wire" label alone is not the decision. Verify the exact certified product in the applicable database and check the product marking, listing attributes and manufacturer instructions for direct-burial suitability. UL notes that PV cable certifications can be checked through its Product iQ system.

Direct Burial vs Conduit: Which Route Is Better?

Neither route is automatically better. The correct choice depends on the approved cable system, site risk, installation skill, thermal design, lifecycle access and total installed cost.

A project may combine both methods: direct-burial cable in a controlled trench, conduit at road crossings and building entries, and above-ground protection at array transitions. Each change of method should be shown on the design and included in inspection records.

Common Underground PV Cable Mistakes

• Burying ordinary H1Z2Z2-K cable because it is UV resistant and intended for outdoor PV use.
• Treating wet-location or water-resistance evidence as direct-burial evidence.
• Assuming an underground conduit remains dry throughout the project life.
• Burying connectors, field splices or junctions without explicit approval and access provisions.
• Ignoring rock, rodents, soil chemistry, irrigation, groundwater and future excavation.
• Publishing or using one universal burial depth without checking the locally adopted rules and route design.
• Skipping ampacity, grouping, conduit-fill and voltage-drop calculations after changing the route.
• Failing to photograph, map and label the installed route before backfilling.

A Practical Underground PV Cable Design Workflow

• Map the route and classify each segment: exposed, tray, conduit/duct, direct burial, crossing, riser or equipment entry.
• Confirm the destination-market rules, project specification, utility requirements and acceptance authority.
• Choose the permitted wiring method and define water, soil, loading, rodent and maintenance conditions.
• Verify the exact cable and accessory evidence for every route segment.
• Calculate conductor size, ampacity, voltage drop, grouping, conduit fill and thermal corrections.
• Detail trench, backfill, protection, drainage, entries, transitions, separation and warning identification.
• Create inspection hold points, test requirements, photographs, route records and as-built documentation before backfill.

SINELINK can review the cable schedule alongside the PV power station cable solution so that array cable, underground routing and project documentation are considered as one system rather than disconnected line items.

Underground Solar Cable RFQ Checklist

Include the following information in the request for quotation:

• Project country, site and locally adopted standard or code edition.
• Route drawing and length by segment.
• Direct burial, conduit/duct, armored/protected or mixed installation method.
• Soil, backfill, groundwater, flooding, chemicals, rodents and mechanical loading.
• Required cable standard, certification/listing, voltage class and explicit direct-burial evidence.
• Conductor material, cross-sectional area, current, string configuration and voltage-drop limit.
• Conduit size, cable grouping, pulling length, bends and transition details where applicable.
• Connector, splice, enclosure, gland and termination requirements.
• Required cable marking, reel length, packaging, traceability and document package, plus inspection, sample approval, testing, delivery schedule and destination.

For an available product-family overview, review the Direct Burial PV Wire entry in the SINELINK PV cable catalog. Finalize the purchase only after the exact datasheet, model, size, marking and destination-market evidence have been confirmed.

Request an Underground PV Cable and Routing Review

Send the project location, route drawing, proposed installation method, electrical schedule, environmental conditions and required compliance documents. SINELINK can help identify the cable information that must be confirmed before quotation and sample approval. Final route acceptance remains subject to the project engineer and the locally applicable authority.

Request an Underground PV Cable & Routing Review.

Frequently Asked Questions

Can solar cable be buried underground?

Yes, but only when the exact cable and complete route are suitable for the selected underground method. Direct burial requires explicit product-specific evidence; otherwise use an approved protected system such as conduit or duct.

Is every H1Z2Z2-K cable suitable for direct burial?

No. H1Z2Z2-K or EN 50618 status alone should not be treated as proof of direct-burial suitability. Check the exact datasheet, certification/listing scope, marking and installation instructions.

 Is UL 4703 PV Wire automatically direct-burial rated?

No. Verify the exact certified product's attributes, marking and manufacturer instructions. The standard or PV Wire designation alone does not establish direct-burial suitability.

Is wet-rated cable the same as direct-burial cable?

No. Wet-location suitability addresses moisture exposure. Direct-burial suitability is a separate attribute that accounts for installation in earth and must be explicitly supported.

 Is sunlight-resistant cable suitable underground?

Not necessarily. Sunlight resistance concerns UV exposure and does not prove suitability for soil contact, crushing, rocks, rodents or other underground stresses.

Does an underground conduit keep solar cable dry?

It should not be assumed to stay dry. Water can enter through condensation, joints and low points, so the cable and raceway system must suit the expected moisture condition.

Can PV connectors be buried with the cable?

Only if the exact connector or jointing system is explicitly approved for that installation and environmental condition. Keep connection points accessible and inspectable wherever the design permits.

How deep should solar cable be buried?

There is no universal depth that applies to every country, wiring method or site. Use the locally adopted requirements and project design for the selected system, loading, crossing and protection conditions.

 What information should a direct-burial cable supplier provide?

Request the exact model datasheet, direct-burial evidence, applicable certificate or listing, cable marking, covered size, voltage class, manufacturer instructions and traceability documents.

Technical References

IEC 62548-1:2023 - Photovoltaic arrays - Part 1: Design requirements - Official IEC standard record.

IEC 62930:2017 - Electric cables for photovoltaic systems with a voltage rating of 1.5 kV DC - Official IEC standard record.

UL - Wire and Cable Application Guide - Official UL marking and application guide.

UL Solutions - Photovoltaic (PV) Cable Testing and Certification - Official UL PV cable certification overview.
