Five insulated copper conductors in one PVC-sheathed cable. The 3C+2 configuration offers a coordinated cable assembly for low-voltage AC distribution, with a broad choice of main and additional conductor sizes.
01 Cable Construction
Class 2 stranded and compacted copper.
XLPE insulation around each conductor.
Black PVC outer covering; unarmored construction.
Non-hygroscopic filler and non-woven binder tape complete the core assembly beneath the outer sheath.
Understanding XLPE Insulation
XLPE stands for cross-linked polyethylene. Cross-linking creates bonds between polymer chains, helping the insulation retain its structure at elevated temperatures while providing electrical insulation around each conductor.
Thermal Performance
This cable has a maximum normal conductor operating temperature of 90°C. Its emergency and short-circuit temperature limits apply to exceptional conditions, not continuous operation.
Insulation and Sheath
XLPE insulates the individual copper conductors. The black PVC outer sheath covers the assembled cores. These layers serve different functions within the cable construction.
Selecting the Right Cable
XLPE describes the insulation material, not the complete cable specification. Voltage rating, conductor size, installation conditions and any required fire performance must also match the project.
You can select the conductor combination to match the circuit design.
Three main cores and two additional cores are combined within one sheath.
Available combinations range from 3 × 2.5 + 2 × 2.5 mm² to 3 × 400 + 2 × 185 mm².
02 Standards & Operating Characteristics
IEC 60502-1
Cable design standard.
IEC 60228
Conductor standard.
03 Structural Characteristics
04 Professional Cable Manufacturing

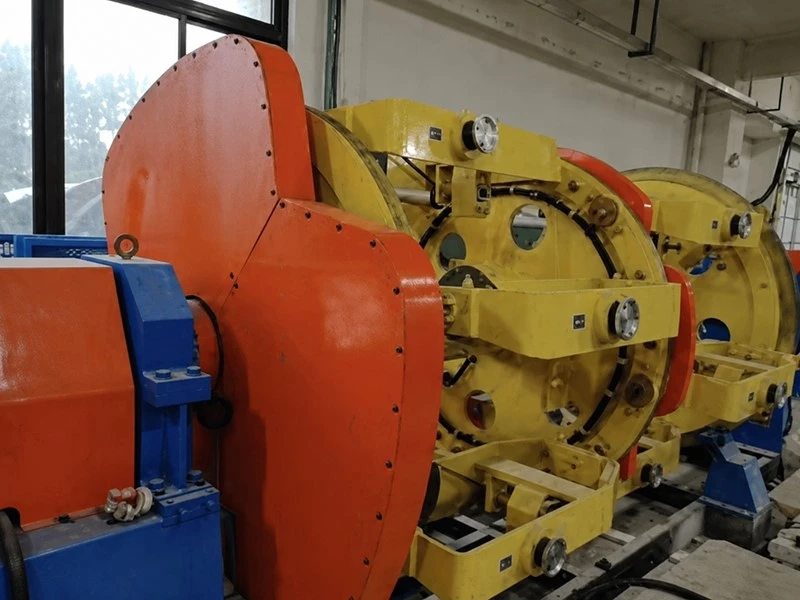

With years of cable manufacturing experience, our factory combines specialized production equipment with standardized processes to deliver consistent quality. We also offer custom cable design and manufacturing to meet specific project requirements.
05 Quality at the Key Checkpoints
Conductor
Conductor construction and resistance are key to electrical performance.
Insulation & Sheath
Thickness, dimensions and surface condition support consistent cable construction.
Finished Cable
Electrical checks, identification and length verification form part of the specified inspection scope.
06 Packing & Project Delivery
Plan the Length. Simplify the Delivery.
Drum lengths and packing requirements can be discussed around the cable schedule, handling equipment and delivery plan.
Include the required size, total length, preferred drum length and destination in your inquiry.
07 Specify for Your Installation
Electrical Requirements
Share the system voltage, load and cable length to support size selection.
Cable Route
State the laying method and mechanical protection requirements for the unarmored construction.
Site Conditions
Provide ambient conditions and installation constraints with your cable schedule.
Bring Your Cable Schedule to Us.
Five-core copper cable, sized and packed for your project.
