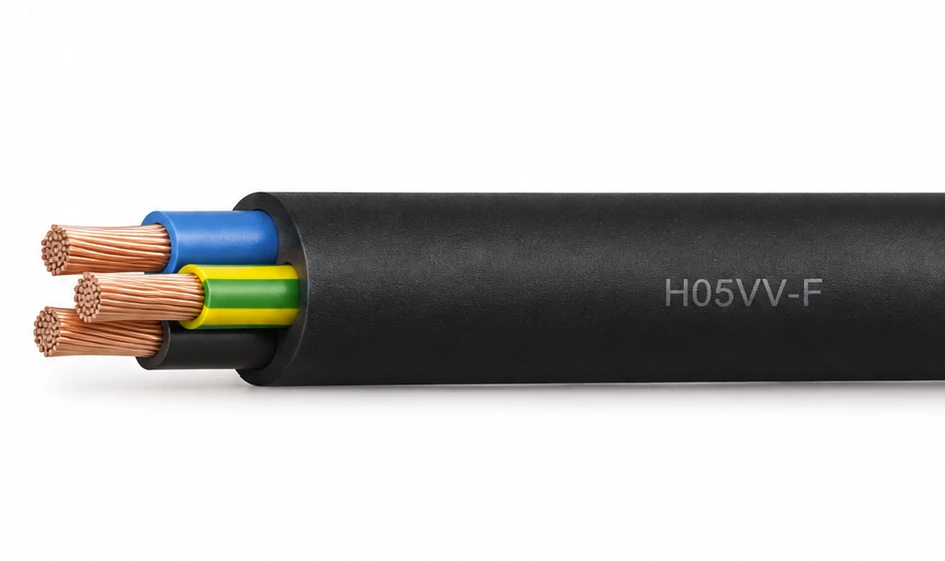

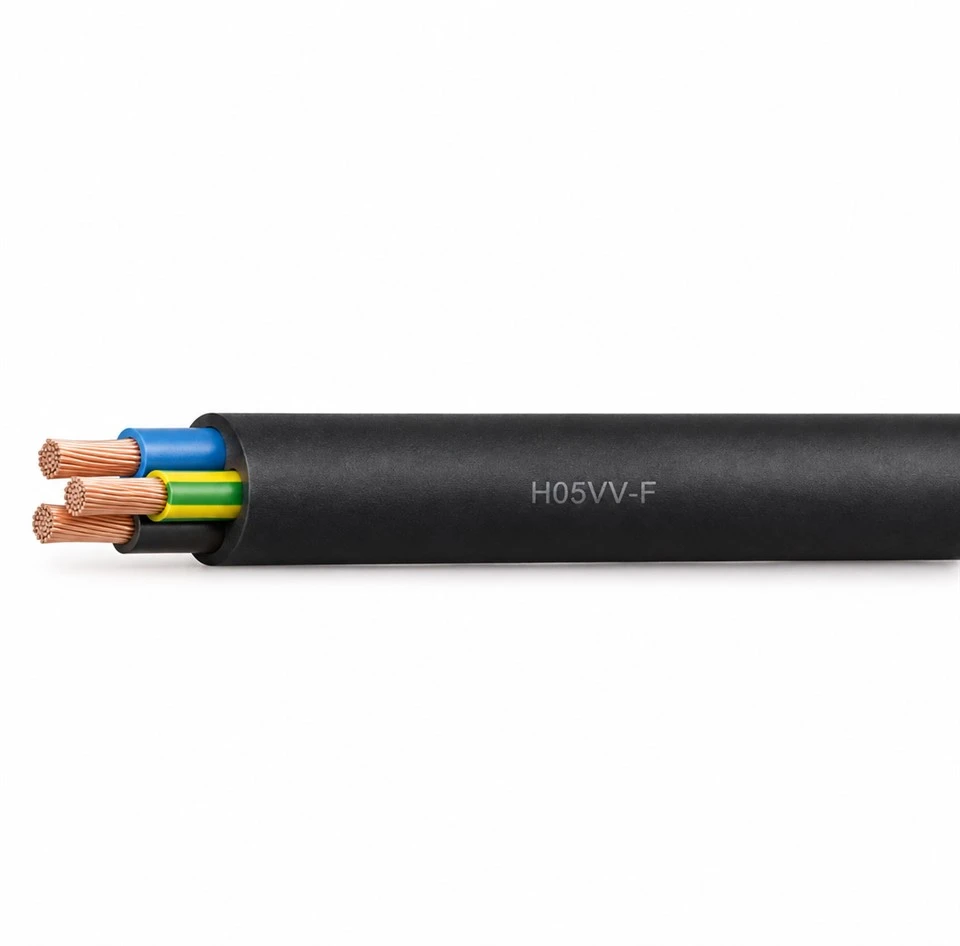

H05VV-F Flexible PVC Cable
FLEXIBLE & PRE-ASSEMBLED CABLES02 / INDOOR PVC FLEXIBLE CABLE
Flexible power for indoor equipment.
H05VV-F Flexible PVC Cable is a 300/500 V round multicore connection cable with Class 5 plain copper conductors, TI2 PVC insulation and a medium-thickness TM2 PVC sheath. It is intended for indoor appliances and equipment connections in homes, kitchens and offices under moderate mechanical stress.
Specify your requirements →
Built around your connection requirements
Review the reference dimensions and electrical data below when specifying your cable. Select the core arrangement, conductor cross-section, black or white sheath, length and packaging for the intended equipment. Final SINELINK supply specifications and approval requirements are confirmed with the order.
Class 5 plain copper
Flexible stranded copper supports routing and termination in appliance and equipment connections.
TI2 insulation / TM2 sheath
The reference construction combines individual PVC-insulated cores with a round, medium-thickness PVC outer sheath.
Indoor appliance connections
Suitable applications include domestic appliances, kitchen equipment and office devices within the approved operating conditions.
Black or white sheath
Choose the jacket colour to suit the equipment. Core colours are referenced to HD 308; confirm the protective-earth arrangement with the order.
Dimensions for cable selection
The reference schedule covers 2–5 cores and 0.75–4 mm², with conductor diameter, insulation and sheath thickness, overall diameter, weight and electrical resistance.
Inside the cable
Conductor: Plain copper, flexible Class 5
Insulation: PVC compound, TI2 quality
Outer sheath:PVC compound, TM2 quality; medium thickness
Cable shape:Circular multicore construction
Core colours:HD 308 reference; confirm protective-earth requirements
Sheath colours:Usually black or white
Technical profile
The following technical values and schedules are taken from the supplied BALDASSARI CAVI reference datasheet. Confirm the final SINELINK specification for your order.
- Nominal voltage U₀/U:300/500 V
- Maximum operating temperature:60°C
- Minimum installation temperature:5°C
- Maximum short-circuit temperature:150°C
- Maximum tensile stress:15 N/mm²
- Minimum bending radius:6 × maximum external diameter
- Application duty:Indoor domestic and equipment connections under moderate mechanical stress
The short-circuit temperature is a fault-condition limit, not a normal operating temperature. No short-circuit duration is specified in the reference.
Construction & installation references
| Item | Reference in the supplied datasheet |
|---|---|
| Construction and specifications | EN 50525-2-11 / CEI 20-107/2-11 |
| Core colours | HD 308 |
| Use and installation | CEI EN 50565-1 / CEI EN 50565-2 |
The source also lists CPR Eca, DoP 1010/17, IMQ A0221 and HAR marking for its identified manufacturer. These are not presented as SINELINK certifications. Request documentation applicable to the product being ordered.
H05VV-F cable dimensions & weights
All dimensions and weights are reference values. Insulation and sheath thicknesses are average values; conductor and production diameters and cable weights are approximate. Scroll the tables horizontally on narrow screens.
| Cores × area (mm²) | Conductor Ø (mm) | Insulation (mm) | Sheath (mm) | Production Ø (mm) | Weight (kg/km) |
|---|---|---|---|---|---|
| 2 x 0.75 | 1.1 | 0.6 | 0.8 | 6.2 | 54 |
| 2 x 1 | 1.3 | 0.6 | 0.8 | 6.6 | 62 |
| 2 x 1.5 | 1.6 | 0.7 | 0.8 | 7.5 | 82 |
| 2 x 2.5 | 1.9 | 0.8 | 1.0 | 9.3 | 128 |
| 2 x 4 | 2.5 | 0.8 | 1.1 | 10.6 | 175 |
| 3 x 0.75 | 1.1 | 0.6 | 0.8 | 6.5 | 63 |
| 3 x 1 | 1.3 | 0.6 | 0.8 | 7.0 | 74 |
| 3 x 1.5 | 1.6 | 0.7 | 0.9 | 8.1 | 103 |
| 3 x 2.5 | 1.9 | 0.8 | 1.1 | 10.1 | 160 |
| 3 x 4 | 2.5 | 0.8 | 1.2 | 11.4 | 220 |
| 4 x 0.75 | 1.1 | 0.6 | 0.8 | 7.1 | 76 |
| 4 x 1 | 1.3 | 0.6 | 0.9 | 7.8 | 93 |
| 4 x 1.5 | 1.6 | 0.7 | 1.0 | 9.0 | 129 |
| 4 x 2.5 | 1.9 | 0.8 | 1.1 | 10.9 | 194 |
| 4 x 4 | 2.5 | 0.8 | 1.2 | 12.4 | 268 |
| 5 x 0.75 | 1.1 | 0.6 | 0.9 | 8.0 | 94 |
| 5 x 1 | 1.3 | 0.6 | 0.9 | 8.5 | 110 |
| 5 x 1.5 | 1.6 | 0.7 | 1.1 | 10.1 | 157 |
| 5 x 2.5 | 1.9 | 0.8 | 1.2 | 12.2 | 236 |
| 5 x 4 | 2.5 | 0.8 | 1.4 | 14.1 | 334 |
Electrical resistance & reference current
Maximum conductor resistance is specified at 20°C. Current ratings are stated at 30°C in free air. The source calculation note assumes three loaded conductors; its applicability to the two-core rows requires confirmation. These values are not unconditional installation ratings.
| Cores × area (mm²) | Max. resistance at 20°C (Ω/km) | Reference current at 30°C, free air (A) |
|---|---|---|
| 2 x 0.75 | 26 | 6 |
| 2 x 1 | 19.5 | 10 |
| 2 x 1.5 | 13.3 | 16 |
| 2 x 2.5 | 7.98 | 20 |
| 2 x 4 | 4.95 | 25 |
| 3 x 0.75 | 26 | 6 |
| 3 x 1 | 19.5 | 10 |
| 3 x 1.5 | 13.3 | 16 |
| 3 x 2.5 | 7.98 | 20 |
| 3 x 4 | 4.95 | 25 |
| 4 x 0.75 | 26 | 6 |
| 4 x 1 | 19.5 | 10 |
| 4 x 1.5 | 13.3 | 16 |
| 4 x 2.5 | 7.98 | 20 |
| 4 x 4 | 4.95 | 25 |
| 5 x 0.75 | 26 | 6 |
| 5 x 1 | 19.5 | 10 |
| 5 x 1.5 | 13.3 | 16 |
| 5 x 2.5 | 7.98 | 20 |
| 5 x 4 | 4.95 | 25 |
Where this cable fits
Domestic & kitchen equipment
Indoor appliance connections in homes and kitchens, with moderate mechanical stress and appropriate installation conditions.
Office equipment
Flexible power connections for office appliances and equipment where the cable construction and temperature limits suit the use.
Appliances in wet conditions
The reference lists washing machines, hair dryers and refrigerators. Suitability depends on the complete appliance and its approved installation; this is not a submersion rating.
Domestic heating appliances
The reference permits heating-appliance connections provided the cable does not contact heat or radiation sources. Keep routing clear of those sources.
Select for the installation
- Plan installation at 5°C or above and operation within the 60°C maximum stated in the reference. Installation temperature and operating temperature are separate limits.
- Use a bend radius of at least 6 × the maximum external diameter. The table gives approximate production diameters, not maximum diameters; confirm the maximum for the ordered cable.
- The stated tensile-stress limit is 15 N/mm². Confirm the allowable pulling force and installation method for the selected cable; do not treat this value as a force in newtons.
- The 150°C short-circuit temperature is not a continuous operating rating. Fault duration and protective-device coordination require an installation-specific check.
- Select conductor size for the actual load, cable length, installation, ambient temperature and voltage drop. Use the current values below only with their stated reference conditions.
- Confirm core identification and protective-earth requirements. The source lists core counts with × notation and does not specify a G or X option for each row.
- Use correctly rated terminals, plugs and strain relief. Do not position this indoor PVC cable as a general-purpose outdoor, heavy-duty rubber or immersion cable.

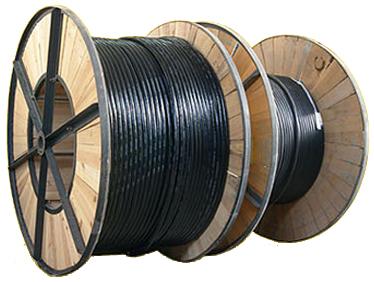

Lengths, labels & packaging
Plan your indoor cable supply
Confirm black or white sheath colour, cable size and cut length or coil packaging. For equipment production, include the cord preparation and identification requirements in your enquiry.
Frequently asked questions
Is 5°C the minimum operating temperature?
No. The reference specifies 5°C as the minimum installation temperature and 60°C as the maximum operating temperature. It does not provide a minimum operating temperature.
How is the bending radius determined?
Use 6 times the maximum external diameter. The approximate production diameter in the schedule is not a guaranteed maximum; obtain the applicable maximum diameter before finalising the bend.
Can the listed current rating be used for any installation?
No. The values are stated for 30°C in free air, and the source note assumes three loaded conductors. That note also appears with two-core entries, so the applicable basis must be clarified before using those entries for design.
Does the reference certificate cover SINELINK cable?
The supplied reference identifies another manufacturer. Certification and declaration requirements for the ordered SINELINK product must be confirmed separately.
Can H05VV-F be used for wet-location appliances?
The reference includes domestic appliances used in wet conditions, subject to the appliance and installation requirements. This does not establish a waterproof, submerged or general outdoor cable rating.
PROJECT ENQUIRY
Request a Cable Quotation
Send the destination market, required approval, number of cores, conductor cross-section, cable length, sheath colour, marking, packaging and intended equipment. SINELINK will review the required H05VV-F construction and quotation details.
