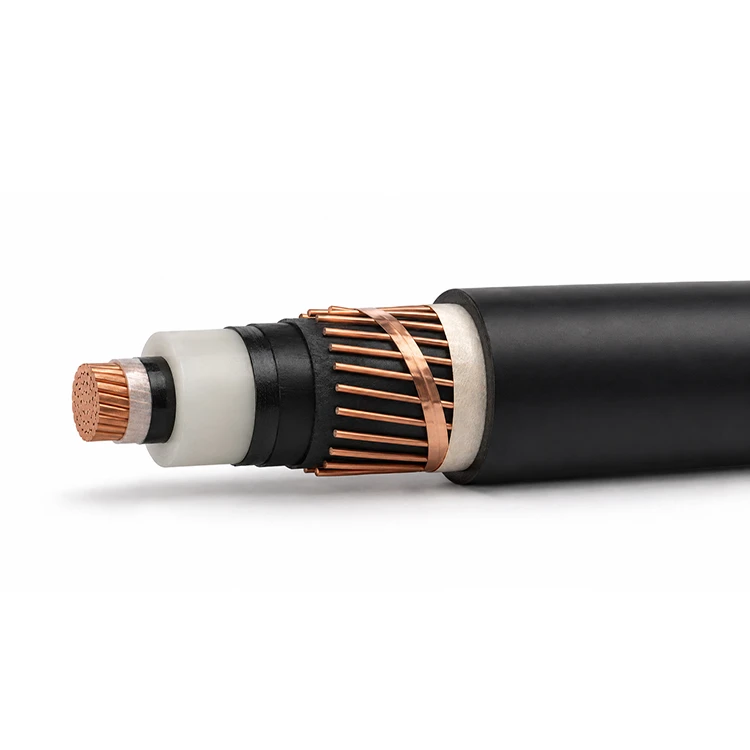

YJSV / YJSY
Screened copper cable for project-specific medium-voltage distribution is specially designed for power plants, substations and precision industrial equipment, scenarios requiring high electromagnetic compatibility (EMC). XLPE insulation and a copper wire screen form the core of a layered electrical design, with PE or PVC outer sheath options to suit the specified construction.
Copper conductor
Stranded copper construction.
XLPE insulation
Insulation with semiconductive screens.
Copper wire screen
A dedicated metallic screening layer.

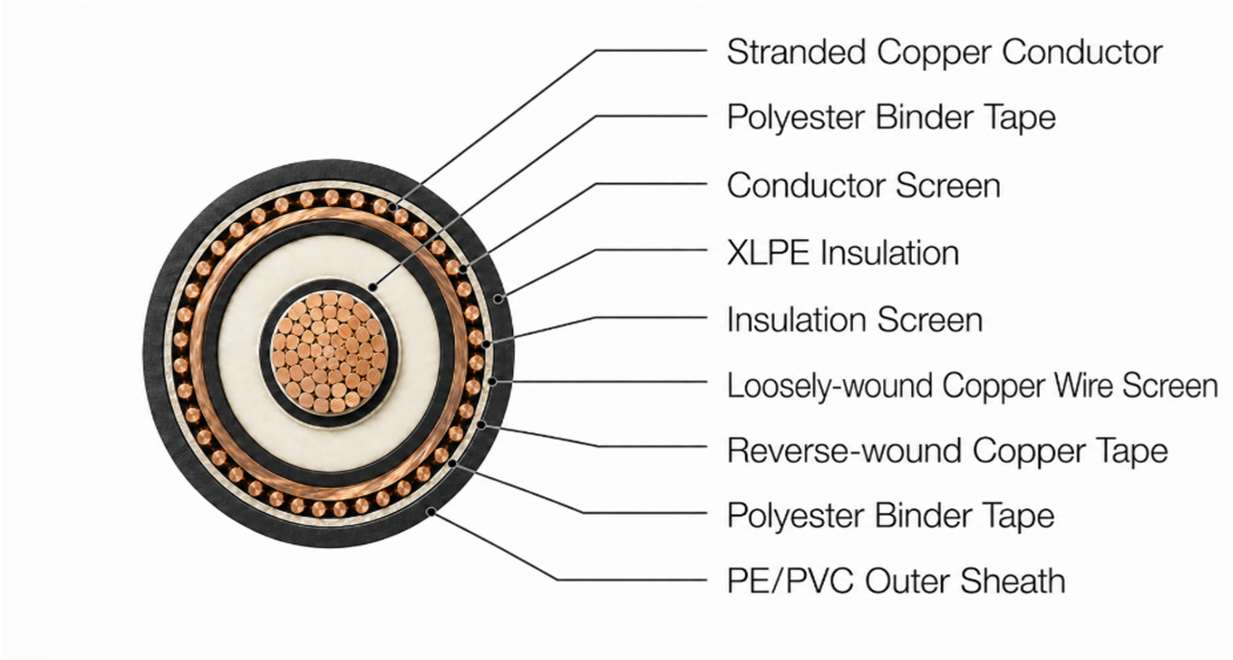

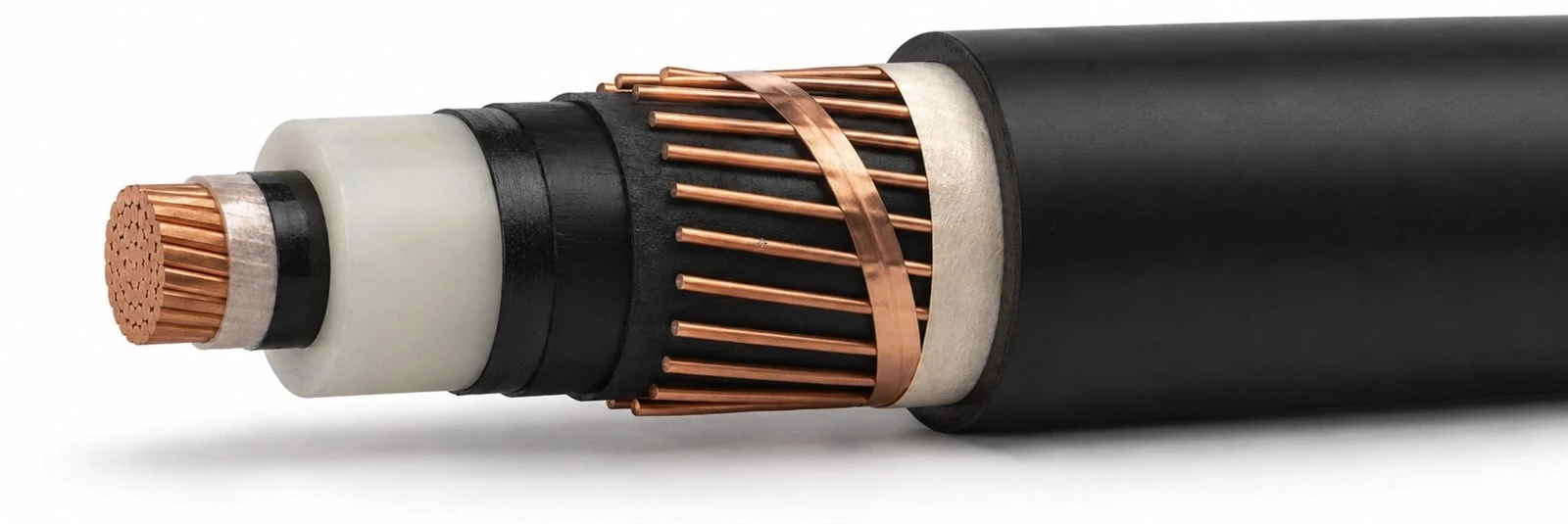

Inside the Screened Construction
Stranded copper, semiconductive screens and XLPE insulation form the electrical core. Copper wires and reverse-wound copper tape provide metallic screening beneath the outer sheath. Select the complete construction and sheath material for the installation.
What Does the Copper Wire Screen Do?-For scenarios requiring high electromagnetic compatibility (EMC)
Manage the electrical field
Semiconductive layers help control the electric field around the insulation. The metallic screen works with the cable system's earthing design.
Coordinate fault protection
Screen sizing and bonding must be coordinated with the project's earth-fault duty and protection settings.
Copper wire screening
Copper wires and reverse-wound copper tape form the metallic screen beneath the outer sheath.
For selection, provide the system voltage, fault requirements, route conditions and termination details.
Single-Core Technical Data - YJSV02 / YJSY03
Three-Core Technical Data - YJSV / YJSY
Where Screened MV Cables Are Used
Substations & Distribution
Fixed connections between transformers, switchgear and distribution equipment.
Industrial Facilities
Medium-voltage feeders serving plant networks and process equipment.
Generation & Renewable Energy
Power collection and distribution connections within generation projects.
Route, voltage, mechanical protection and environmental requirements determine the suitable cable configuration. Duct, outdoor and buried installations each require a project-specific assessment.
Three Things to Know Before Selection
Insulation and sheath differ
XLPE insulates the conductor. The outer sheath protects the cable surface; its material does not replace the insulation system.
Screen size matters
Specify the copper screen cross-section alongside the conductor size. Screen selection follows the system earthing and fault-current requirements.
Match the accessories
Select joints and terminations for the cable voltage, insulation diameter and copper wire screen arrangement.
Specify the Cable Around the Project
Voltage & accessories
Match the rated voltage and insulation dimensions to the network, joints and terminations.
Sheath & environment
Specify the PE or PVC sheath against the actual route and environmental requirements.
Installation & delivery
Confirm bending limits, pulling conditions, drum lengths and screen bonding with the installation design.

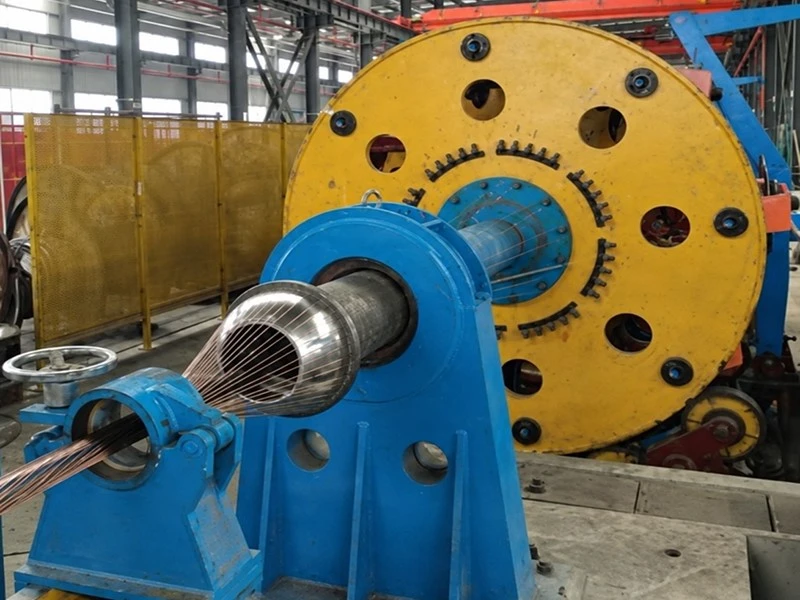

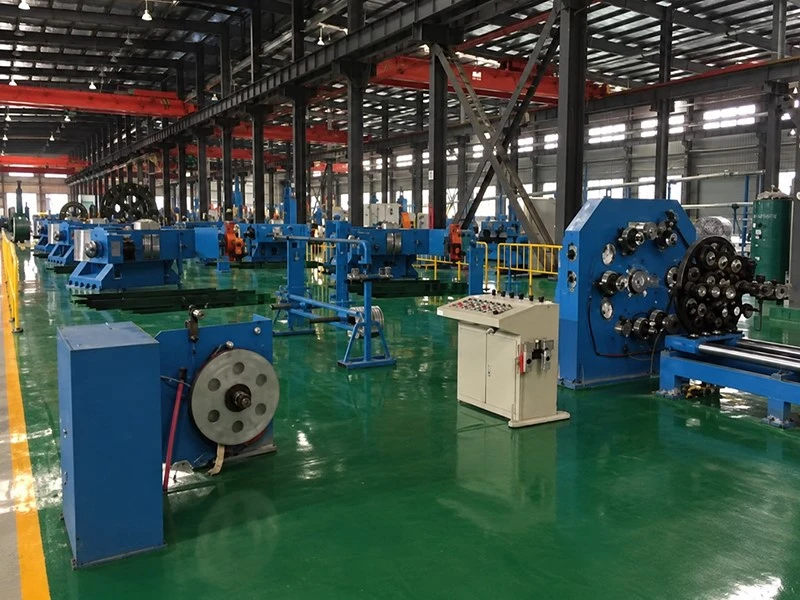

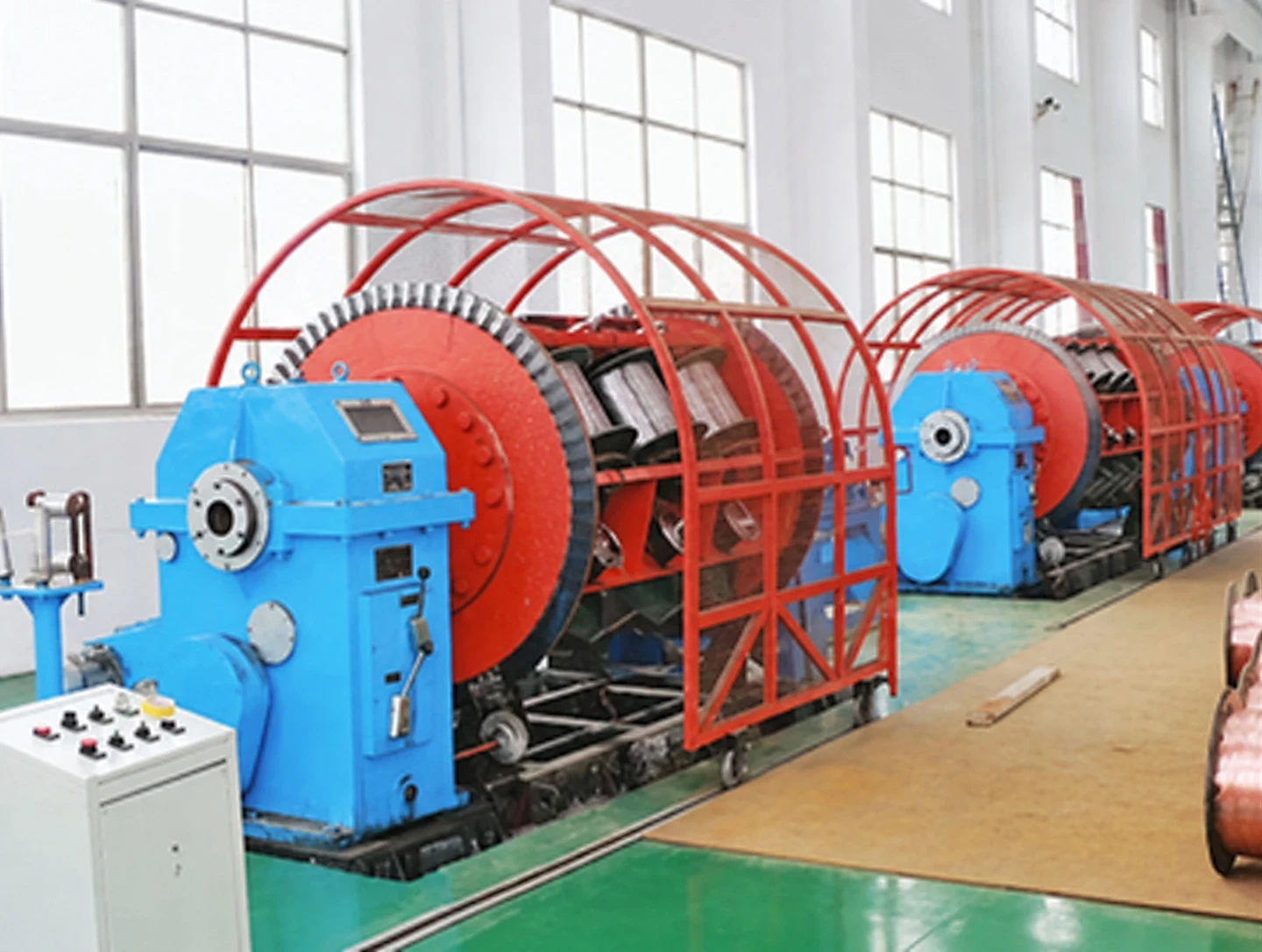

Professional Cable Manufacturing
Coordinated production processes support consistent conductor formation, cable assembly and finishing.

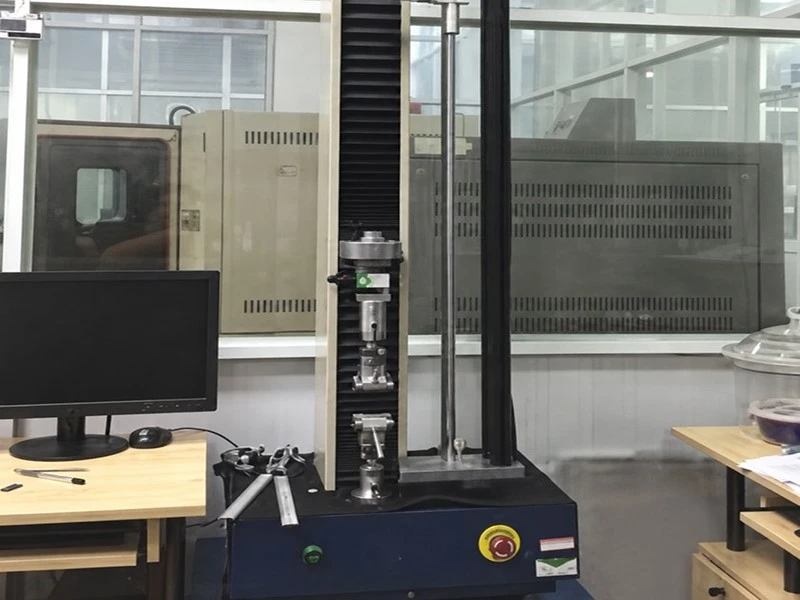

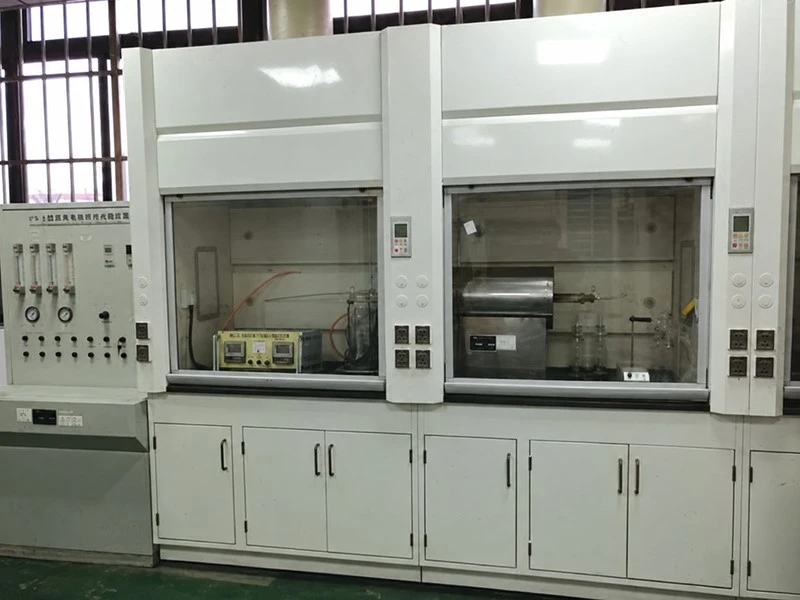

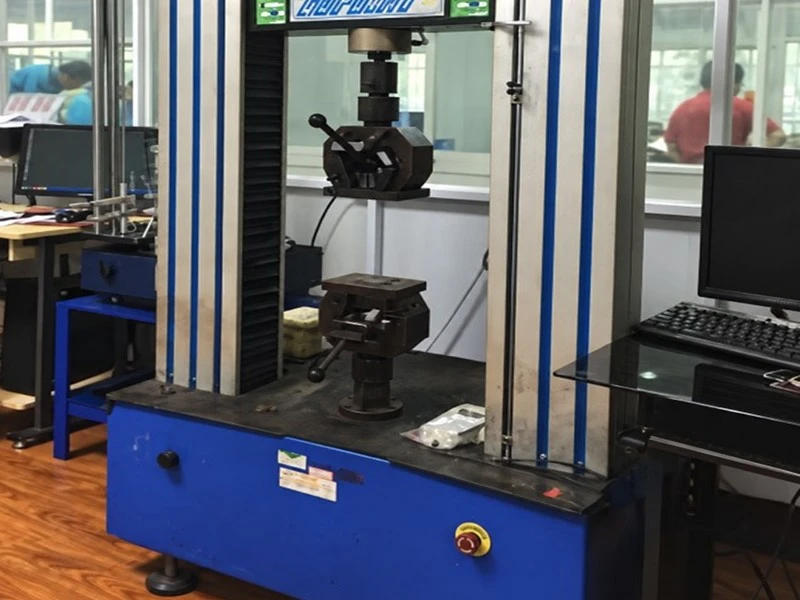

Quality Control
Production and laboratory inspection capabilities support material evaluation and finished-cable quality control.
Packing & Project Delivery
Plan the Length. Simplify the Delivery.
Drum lengths and packing requirements can be discussed around the cable schedule, handling equipment and delivery plan.
Include the required size, total length, preferred drum length and destination in your inquiry.
Build Your YJSV / YJSY Cable Specification
Send your voltage rating, core configuration, conductor size, screen requirements, installation conditions and delivery schedule. We can discuss the cable construction and drum plan around your project.
Dimensions and weights are approximate. Confirm the voltage rating and final cable specification for your project.
