Single Core XLPE Insulated Unarmored Cable with Copper Conductor
A screened copper cable for medium-voltage distribution projects. XLPE insulation, semiconductive layers and a copper tape screen form a coordinated electrical construction beneath a black PVC sheath.
3.6/6 to 26/35 kV
Voltage configurations
25–630 mm²
Size range depends on voltage
Copper tape screen
Unarmored construction
A Layered Design for Medium Voltage
Conductor
Class 2 plain annealed, compacted copper.
Electrical Insulation System
Semiconductive conductor screen, XLPE insulation and semiconductive insulation screen.
Screen & Outer Protection
Plain annealed copper tape screen, non-woven binder tape and black PVC (ST2) outer sheath.
Voltage & Size Selection
What Does 8.7/15(17.5) kV Mean?
U₀ = 8.7 kV
Rated voltage between the conductor and earth or metallic screen.
U = 15 kV
Rated voltage between phase conductors.
Uₘ = 17.5 kV
Maximum system voltage associated with the rating.
Select the rating to match the system and its operating conditions. Voltage-rating reference.
Medium-Voltage Cable Basics
Why the Extra Screens?
Semiconductive layers help control the electric field around the insulation. The metallic screen is a separate component, coordinated with the earthing design.
Screening Is Not Armor
The copper tape is an electrical screen, not a substitute for mechanical armor. Route protection must suit the installation.
Accessories Matter
Joints and terminations must match the voltage rating, insulation diameter and screen construction. Stress control at cable ends is part of a complete MV connection.
Background: Prysmian electrical field control · Nexans termination stress control.
Operating Characteristics
Emergency and short-circuit limits do not describe continuous operation.
Specify the Whole Cable System
Current & Heat
Current capacity depends on the installation method, ambient conditions and grouping. A cross-section alone does not define ampacity.
Water & Mechanical Exposure
Water-blocking and mechanical protection are construction choices. A standard PVC sheath alone does not establish suitability for every buried or wet route.
Installation Planning
Use cable-specific bending and pulling limits. Coordinate accessory dimensions, screen bonding and commissioning requirements with the installation design.
General scope: IEC 60502-2 covers 6–30 kV cables (Uₘ up to 36 kV); the applicable specification for a 26/35(40.5) kV project must be established separately.
Professional Cable Manufacturing
Coordinated production processes support consistent conductor formation, cable assembly and finishing. Material selection and production planning follow the required cable construction and order specification.
Quality Control

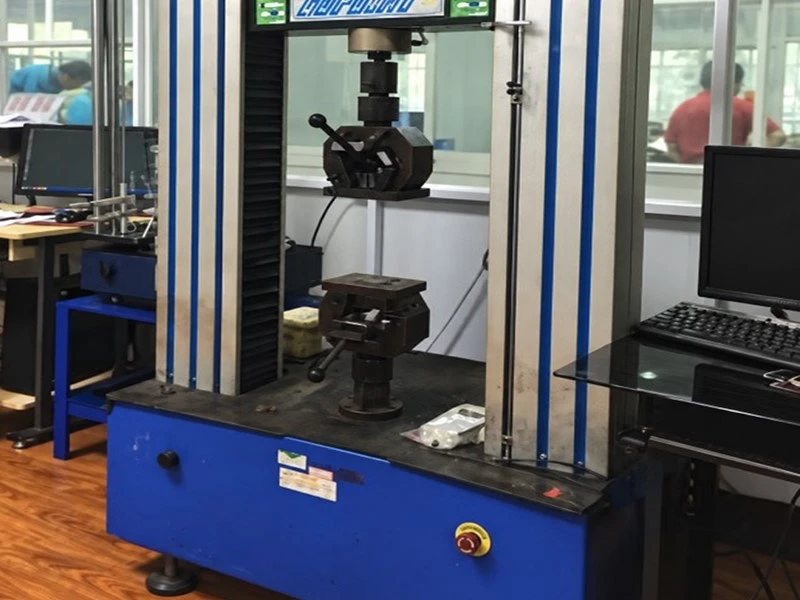

Production and laboratory inspection capabilities support material evaluation and finished-cable quality control.
Drum Packing & Project Delivery
Plan the Length. Simplify the Delivery.
Drum lengths and packing requirements can be discussed around the cable schedule, handling equipment and delivery plan.
Include the required size, total length, preferred drum length and destination in your inquiry.
Plan Your Medium-Voltage Cable Order
Send the voltage rating, conductor size, route length, installation conditions, screen requirements and destination standard. Include the required drum lengths and termination interfaces.
Request a Cable Quotation →
