Product overview

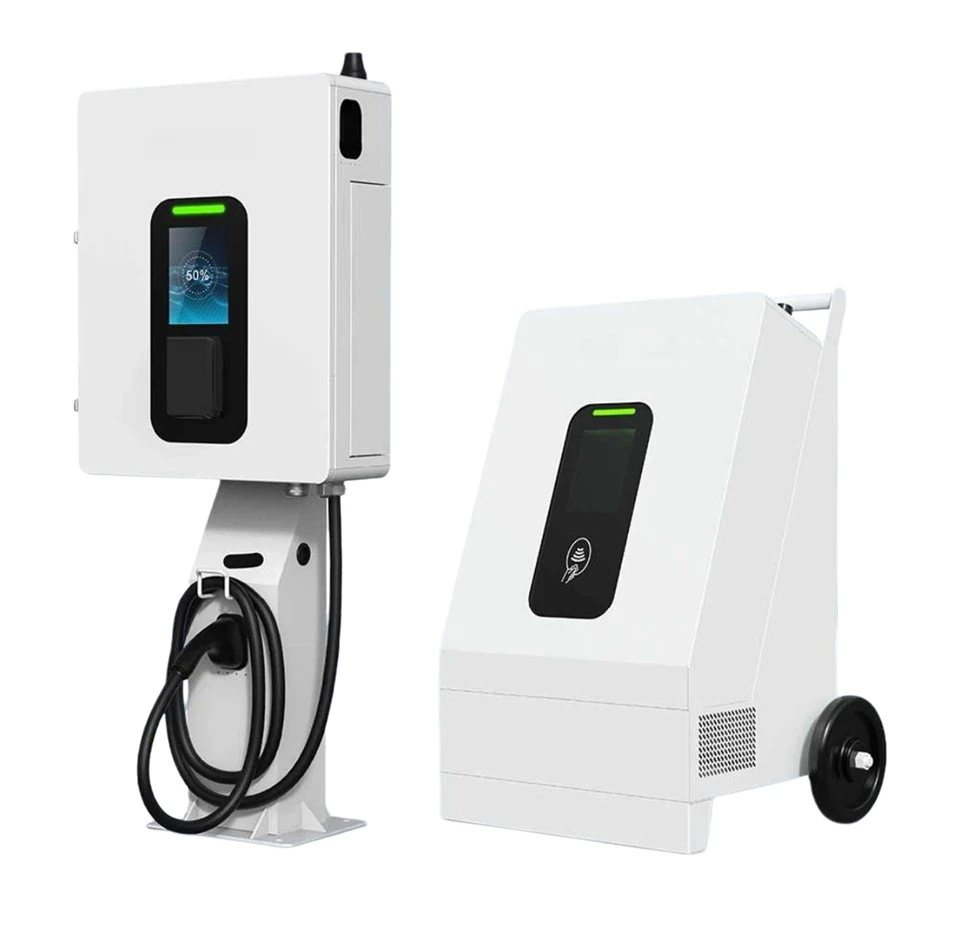

The SEC 30 kW DC Charger is a compact single-connector CCS2 charger for sites that need faster charging than an AC wallbox without the footprint and grid demand of a high-power cabinet. Its 200-1000 V output range, wall- or pedestal-mounted format, 8-inch touchscreen and connected backend options suit workplace, dealership, destination and light-fleet applications..
Key Product Advantages
An 8-inch touchscreen and LED indicators display charging status in real time for straightforward daily use.
The enclosure is stated as IP55/IK10 for indoor or outdoor installation under the approved site conditions.
Overvoltage, undervoltage, overcurrent, overtemperature and surge protection support controlled charging.

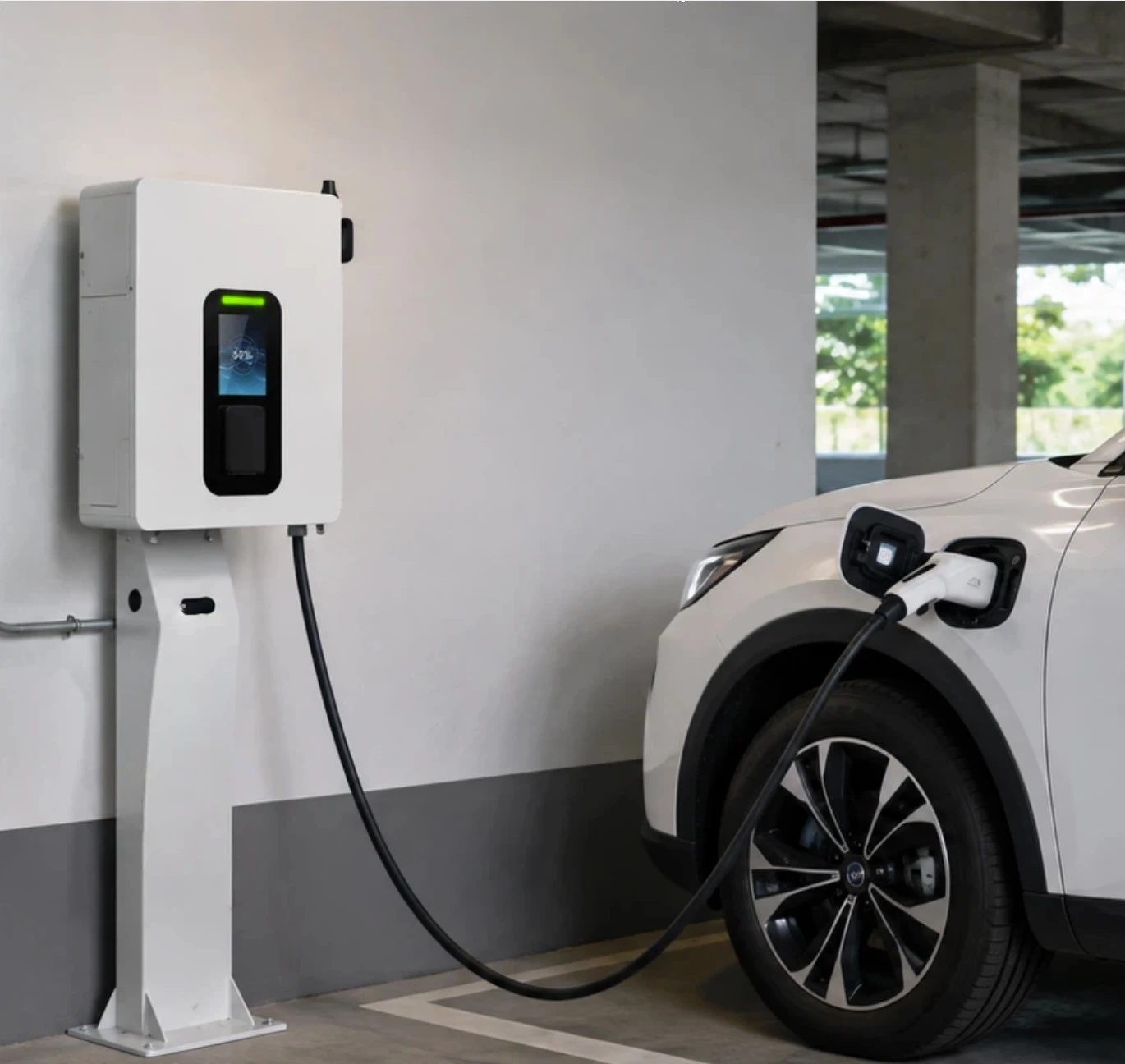

Wall-mounted and pedestal-mounted arrangements help adapt the charger to different parking layouts.
The 200-1000 V DC output window supports a broad range of compatible passenger EV battery platforms.
Ethernet/GSM and 4G connectivity support OCPP 1.6J and OCPP 2.0.1 backend operation.
Technical Specifications
Selection Guidance
Choose this platform when faster-than-AC charging is required but the site does not justify a 60-240 kW cabinet.
At the 80 A current limit, approximately 375 V is required to reach 30 kW. Lower-voltage vehicles may receive less power.
Confirm the 400 V AC supply, upstream protection, earthing, cable sizing and available electrical capacity.
Choose wall or pedestal mounting from parking geometry, impact protection, service access and cable reach.
Confirm OCPP version, backend compatibility, SIM/data responsibility, remote access and network coverage.
Recommended Applications
Practical Inspection & Maintenance Notes
Routine checks, preventive maintenance and first-line troubleshooting for AC and DC chargers
Download maintenance manualConfirm Your Project Configuration
Send the destination market, site supply, vehicle mix, mounting plan, backend requirements and delivery schedule for technical review.
