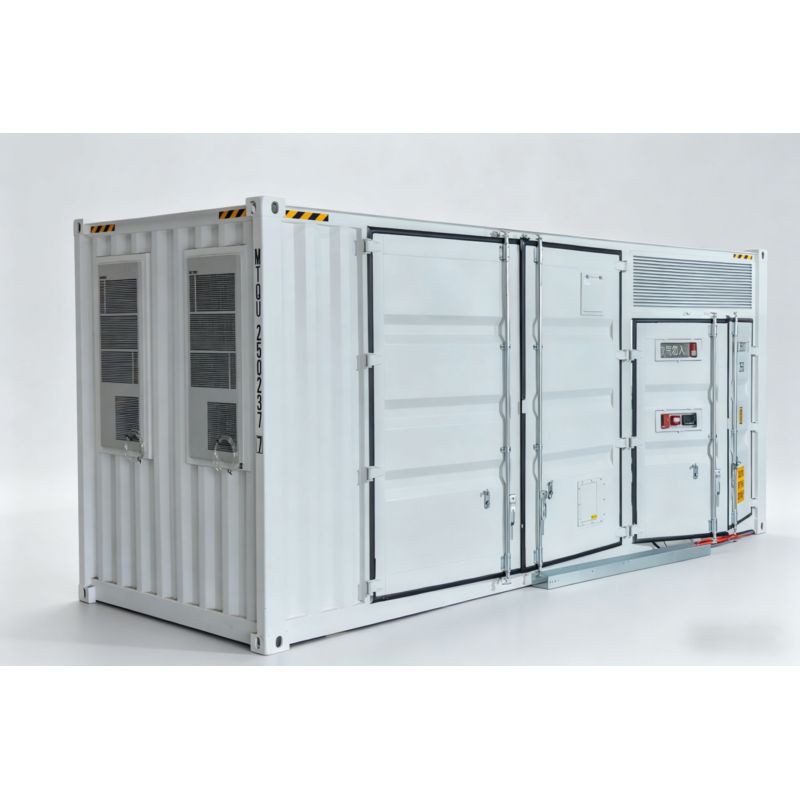

Product Overview

The 1331V High Voltage Battery System operates on the 1500V DC platform,the voltage class that is rapidly becoming the standard for utility-scale and large commercial energy storage. With a nominal voltage of 1,331V and a working range up to 1,500V, this system is engineered for the next generation of high-voltage PCS hardware that delivers more power per string, fewer parallel connections, and lower balance-of-system cost at scale.

Where the 1000V platform serves the broad C&I market, the 1331V system targets projects where scale economics dominate: utility-scale storage farms, large industrial microgrids, and front-of-meter installations where every percentage point of efficiency and every dollar of cabling cost matters across tens of megawatt-hours.

Technical Specifications

Parameter	Specification
Battery Chemistry	LFP (LiFePO₄)
Nominal DC Voltage	1,331V
DC Voltage Range	1,064V–1,500V
Usable Capacity per Unit	280 kWh/372 kWh
Max Charge/Discharge Rate	0.5C standard/1C optional
Cycle Life	≥ 6,000 cycles @ 90% DoD (25 °C)
Round-Trip Efficiency	≥ 96% (DC-DC)
Operating Temperature	-20 °C to +55 °C
Insulation Monitoring	Continuous IMD with automatic fault localization
Communication	CAN 2.0B, RS485, Modbus TCP, IEC 61850
Safety Features	Arc-flash detection, dual-contactor isolation, active thermal runaway propagation prevention
Cooling	Liquid cooling
Protection Rating	IP55
Certifications	IEC 62619, UL 9540A, IEC 62477, UN 38.3, CE
Dimensions (372 kWh)	1,500 × 850 × 2,200 mm
Weight (372 kWh)	≈ 3,200 kg

The Economics of 1500V

Moving from 1000V to 1500V DC is not just a voltage increase - it changes the system economics at scale. Higher voltage means lower current for the same power, which translates directly into:

• Smaller cable cross-sections - up to 33% reduction in copper weight per MW

• Fewer parallel battery strings per PCS - simpler DC combiner design

• Higher PCS power density - 1500V inverters deliver 50% more power per unit than 1000V equivalents

• Lower I²R losses - reduced heat generation in cables, busbars, and connectors

• Fewer DC disconnects, fuses, and protection devices per megawatt

For a 10 MWh project, the balance-of-system cost savings from 1500V architecture typically amount to 8–12% of total installed cost compared to an equivalent 1000V design. At 50 MWh and above, the savings become even more pronounced.

Core Applications

Utility-Scale Energy Storage

Front-of-meter storage projects from 10 MWh to hundreds of MWh. The 1331V battery pairs with 1500V-class central inverters or string inverters in high-density configurations, minimizing land use and infrastructure cost.

Large Industrial Microgrids

Industrial campuses with multi-megawatt loads benefit from the reduced cabling and higher efficiency of 1500V DC architecture, especially when battery racks are distributed across a large site.

Renewable Firming & Shifting

Paired with utility-scale solar or wind farms, the 1331V system stores excess generation and dispatches it during high-value periods. The high DC voltage matches the 1500V string voltage of modern bifacial PV modules, enabling efficient DC-coupled configurations.

Typical Application Scenarios

100 MWh Utility Storage Farm

A utility developer in the Middle East is building a 100MWh/50MW storage facility to provide peak capacity and frequency regulation. The project uses 270 units of the 372kWh battery rack connected to 1500V central inverters. Compared to the 1000V alternative evaluated during design, the 1500V architecture reduced DC cabling cost, eliminated 40% of DC combiner boxes, and allowed the use of fewer inverters,cutting total BOS cost by 11%. The project footprint shrank by 15%, a critical factor on the constrained site.

20 MWh Solar-Plus-Storage at a Mining Operation

A copper mine in South America deployed 15 MWp bifacial PV with 20 MWh of 1331V battery storage, DC-coupled on the same 1500V bus. The matched voltage eliminates the DC-DC converter stage that a 1000V battery would require, saving 1.5–2% in round-trip efficiency. Over the 20-year project life, that efficiency gain translates to an additional 6,000 MWh of usable energy.

Grid-Scale Frequency Regulation Asset

An independent power producer operates a 30 MWh/15 MW storage asset in a European frequency regulation market. The 1331V battery's high DC voltage enables the use of compact 1500V PCS units with 200 ms response time. The higher energy density per rack means fewer racks, fewer communication nodes, and faster system-wide response, critical for meeting the stringent performance requirements of primary frequency response contracts.

Industrial Free Trade Zone with Centralized Storage

A 500-hectare industrial free trade zone installed a centralized 50 MWh storage facility to manage the zone's aggregate demand peak and provide emergency backup to critical tenants. The 1331V system connects to the zone's 35 kV distribution network via a single step-up transformer. The high DC voltage minimized the DC-side infrastructure within the storage building, allowing the entire 50 MWh to fit in a 1,200 m² facility.

Safety at 1500V

Higher voltage demands more rigorous safety engineering. The 1331V system incorporates:

• Continuous insulation monitoring (IMD) with automatic string-level fault localization

• Arc-flash detection sensors with sub-millisecond contactor trip

• Dual-contactor isolation on each rack, both positive and negative poles

• Active thermal runaway propagation prevention: aerogel barriers, pressure venting, and module-level fire suppression

• All DC wiring rated for 1500V DC with appropriate creepage and clearance distances per IEC 62477

Personnel working on the DC side must follow high-voltage safety procedures. We provide detailed lockout/tagout procedures, PPE specifications, and on-site safety training as part of the commissioning package.

Choosing Between 1000V and 1331V

Criterion	1000V System	1331V System
Typical project size	100 kWh – 5 MWh	5 MWh – 100+ MWh
PCS compatibility	Broadest (all major brands)	1500V-class PCS
BOS cost advantage	Baseline	8–12% lower at scale
DC-coupled solar match	1000V string PV	1500V bifacial PV
Safety complexity	Standard LV practices	HV procedures, IMD, arc-flash protection
Best fit	C&I, retrofit, multi-vendor	Utility-scale, greenfield, cost-optimized
