Product Overview
6 AWG PV Wire is the heavy-current conductor in the UL 4703 product line , the point where photovoltaic wiring shifts from string-level conductors to serious collection and feeder duty. With an ampacity around 75A in free air, 6 AWG handles the kind of DC load that appears in large commercial arrays, long-distance home runs, and energy storage circuits where voltage drop and thermal performance are both critical design factors.
It is not the wire used everywhere in a PV system. It is the wire used where the system carries concentrated power: combiner outputs, inverter inputs, long feeder runs, and battery storage main circuits. In North American projects, 6 AWG often marks the upper end of rooftop PV wire sizing before cable design moves into THWN-2 or tray cable for certain portions of the installation.
Specifications
|
Parameter |
Specification |
|
Wire Gauge |
6 AWG |
|
Conductor |
Stranded tinned copper |
|
Voltage Rating |
600V/1000V/2000V DC |
|
Insulation |
Cross-linked polyethylene (XLPE) |
|
Temperature Rating |
90°C wet, 150°C dry |
|
Sunlight Resistance |
Sunlight resistant (outdoor rated) |
|
Ampacity (90°C) |
~75A (free air, single conductor) |
|
Jacket |
Single-layer XLPE insulation/jacket |
|
Listing |
UL 4703 |
|
NEC Use |
PV output circuits, combiner outputs, storage DC circuits |
|
Color |
Black, red, or custom |
Core Uses
Combiner Box Outputs
Once multiple strings merge in a combiner, the outgoing circuit carries the combined current of all those strings. This is where 6 AWG wire comes into its own. It handles the higher current with adequate thermal margin and keeps voltage drop under control across the route to the inverter or DC disconnect.
Long-Distance Feeder Runs
In large ground-mounted systems or buildings with remote equipment rooms, the DC run from the array field to the inverter can stretch 80, 100, or 150 feet. At these distances, lighter wire wastes measurable energy in resistance. 6 AWG reduces that loss and protects system yield.
Battery Storage Main Circuits
Battery energy storage systems often carry much higher continuous current than a PV string circuit. 6 AWG wire serves these DC main circuits such as between battery racks, DC buses, hybrid inverters, and charge controllers, where both ampacity and temperature rating are important.
Application Scenarios
Commercial Rooftop and Industrial PV
Large commercial rooftops and industrial solar installations generate enough DC current to justify 6 AWG wire on their output circuits. After strings consolidate in combiner boxes, 6 AWG carries the combined current to inverter inputs or DC distribution equipment, balancing ampacity, voltage drop, and installation practicality.
Ground-Mounted Solar Farms
In utility-style ground-mounted projects, 6 AWG wire handles the collection runs between field combiners and inverter pads. Its robust conductor size withstands long conduit pulls, outdoor trench routing, and the physical demands of field installation while delivering the ampacity those collection circuits require.
Battery Storage and Hybrid Systems
Solar-plus-storage systems place heavier current demands on certain DC circuits than a pure PV string array. 6 AWG wire serves the battery side of hybrid inverters, the DC connection between battery modules and main bus bars, and the charge/discharge circuits where continuous current can remain elevated for long periods.
Long Home Runs in High-Output Systems
Some residential and light commercial systems install the inverter and main service equipment far from the array. Where the home run length is significant and the output current is elevated, 6 AWG reduces voltage drop enough to justify the material upgrade.
Selection Guide
Use 6 AWG PV Wire when the circuit is clearly beyond string-level duty. It is the correct choice when:
- Combiner output current exceeds the practical range of 8 AWG
- Feeder distance is long enough that 8 AWG voltage drop becomes a concern
- The circuit is part of a battery storage main DC loop
- The installation is commercial, industrial, or distributed utility scale
For routine residential string wiring, 10 AWG or 8 AWG is usually sufficient. For very high-current trunk lines in centralized architecture, cable sizing may need to move beyond 6 AWG into larger feeder conductors depending on system design.
Shipping and Logistics

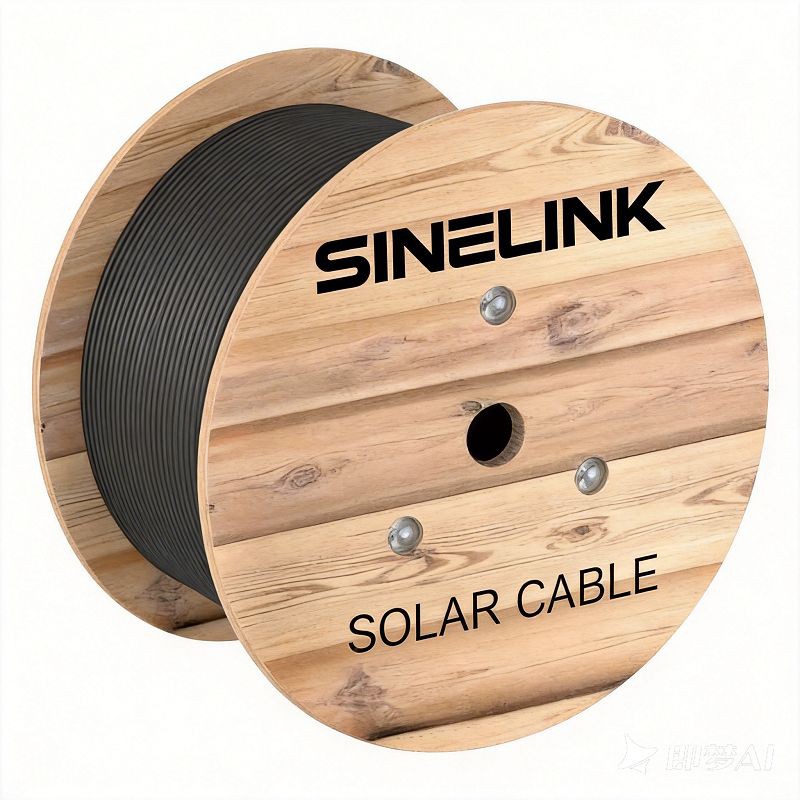

6 AWG PV Wire is supplied on heavy-duty spools or wooden reels depending on order volume. Standard lengths include 500 ft and 1000 ft, with custom cutting available for project work. Due to the conductor weight, larger orders are typically shipped on pallets for safer handling. Export packaging, private-label printing, and custom reel marking are available for distributors and OEM customers.
