Product Overview

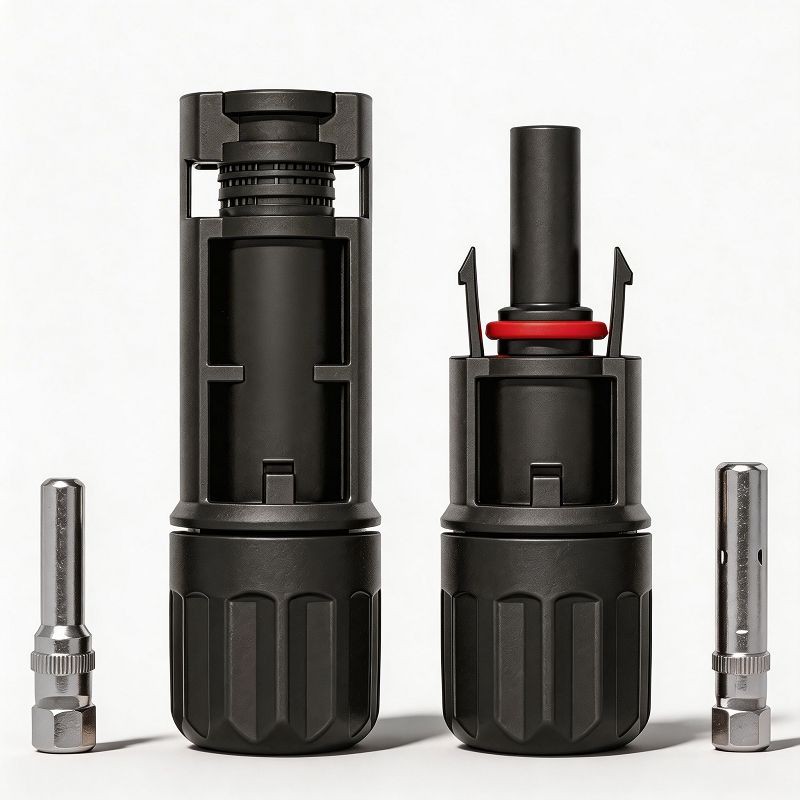

1500V MC4 Solar Connector is designed for high-voltage photovoltaic systems that operate above the limits of standard 1000V DC connectors. As utility-scale and large commercial solar projects increasingly adopt 1500V architecture to reduce BOS cost and increase string length, the connector becomes a high-voltage component rather than a simple cable accessory. This model provides the insulation performance and creepage distance required for those systems.
The advantage of 1500V design is straightforward: longer strings, fewer parallel branches, fewer combiner inputs, and lower copper cost. But those savings only materialize if every component in the DC path - including the connector - is rated accordingly. A 1500V connector ensures the entire string circuit remains compliant and safe under elevated open-circuit voltage conditions.
Specifications
|
Parameter |
Specification |
|
Connector Type |
MC4 inline solar connector |
|
Rated Voltage |
1500V DC |
|
Rated Current |
30A-50A (model dependent) |
|
Contact Material |
Copper alloy, silver plated or tin plated |
|
Housing Material |
UV-resistant, PPO/PA engineering plastic |
|
Protection Rating |
IP67 |
|
Temperature Range |
-40°C-85°C |
|
Wire Compatibility |
2.5–10mm²/8–14 AWG |
|
Standards |
IEC62852/TUV |
|
Locking |
Snap-lock, tool-release |
Core Uses
1500V MC4 connectors are used anywhere the PV source or output circuit is designed above 1000V DC. Their purpose is not just to connect cable, but to maintain insulation integrity across the high-voltage string path.
- 1500V string wiring in utility-scale solar farms
- High-voltage combiner box inputs and outputs
- Large commercial systems adopting 1500V string inverters
- High-voltage extension leads and field-assembled cable harnesses
Application Scenarios
Utility-Scale Solar Plants
The primary market. In utility PV plants, designers use 1500V strings to place more modules in series and reduce BOS hardware. Every series connection in that string needs a connector with matching voltage rating, which is where the 1500V MC4 becomes mandatory.
Large Commercial Rooftops
As 1500V string inverter technology enters the large rooftop segment, commercial buildings with broad roof areas are starting to use high-voltage DC architecture. The 1500V connector supports these projects by extending utility-style voltage design into commercial-scale deployment.
PV Plus Storage DC Coupling
Some advanced DC-coupled storage systems operate on elevated DC bus voltage. In these systems, a 1500V connector maintains the same insulation class across the PV side and the shared DC bus, simplifying system design and component matching.
Selection Guide
Choose a 1500V MC4 Solar Connector when the system maximum voltage exceeds 1000V DC or when the project specification explicitly requires 1500V-rated DC components. For standard residential and most conventional commercial systems operating at 1000V or below, a regular MC4 connector is sufficient.
If the project also requires a specific certification path, select the TUV-certified or UL-certified connector variant within the same voltage class.
Technical Note
High-voltage connector performance depends not only on the nominal rating but also on field assembly quality. Proper crimping, full insertion, correct sealing, and matched male/female contact geometry are essential. In a 1500V system, even a small assembly error can create localized heating or insulation weakness over time.
