Product Overview

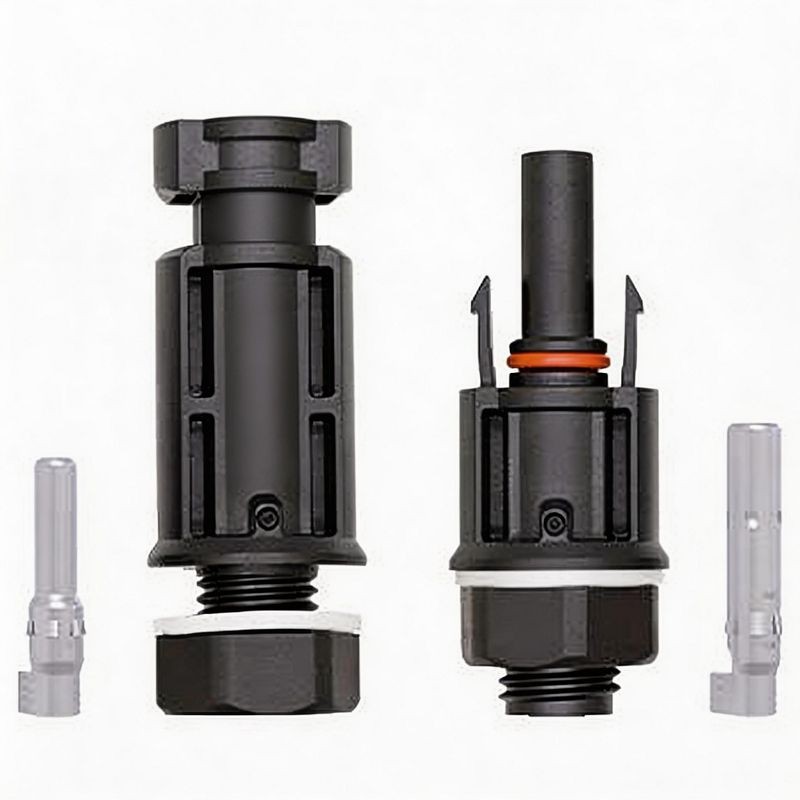

IP67 Waterproof MC4 Connector delivers full submersion-grade sealing for photovoltaic DC connections exposed to the harshest weather conditions. While standard MC4 connectors provide IP65 protection-adequate for normal rain and dust-IP67 takes the seal to a different level: the connector can withstand temporary immersion in water up to 1 meter deep for 30 minutes without moisture reaching the contact area. The connector uses multi-point O-ring seals and precision-molded housing to maintain its protection rating across years of thermal cycling and UV exposure.

Specifications

Parameter	Specification
Connector Type	MC4 inline solar connector
Rated Voltage	1000V AC/1500V DC
Rated Current	30A-50A
Protection Rating	IP67
Sealing	Triple O-ring seal system
Contact Material	Copper alloy, tin or silver plated
Housing Material	UV-resistant, PPO, reinforced
Temperature Range	-40°C-85°C
Wire Compatibility	2.5–6 mm²/ 0–14 AWG
Standards	IEC 62852
Locking	Snap-lock, tool-release

Core Uses

Exposed Outdoor Connections

Any MC4 connection that sits in an exposed location say not inside a junction box or combiner enclosure, benefits from IP67 sealing. This includes panel-to-panel connections on open racking, extension cable joints on rooftops, and any field-assembled connection that will spend decades exposed to weather.

Flood-Risk and Low-Lying Installations

Ground-mounted solar arrays in areas with seasonal flooding, high water tables, or poor drainage can experience temporary water contact at connector level. IP67 protection ensures the connection survives these events without moisture ingress.

Coastal and Marine-Adjacent Sites

Salt spray, high humidity, and wind-driven rain create an aggressive environment for electrical connections. IP67 connectors with their enhanced sealing resist salt intrusion and corrosion initiation at the contact interface.

Application Scenarios

Tropical and Monsoon Climate Installations

In Southeast Asia, South Asia, Central America, and other tropical regions, solar installations face intense rainfall, high humidity, and extended wet seasons. IP67 connectors provide the sealing margin needed to maintain contact integrity through years of monsoon exposure.

Coastal Solar Farms

Solar farms within a few kilometers of the coast experience salt-laden air and periodic salt spray events. The enhanced sealing of IP67 connectors reduces the risk of salt crystal formation inside the contact chamber, which can cause resistance increase and localized heating over time.

Flat Rooftop Systems with Ponding Risk

Commercial flat rooftops can develop standing water after heavy rain, especially around drains and low spots. MC4 connections near roof level may sit in pooled water for hours. IP67 rating ensures these connections remain sealed during ponding events.

Selection Guide

Choose IP67 Waterproof MC4 Connector when the installation environment presents moisture exposure beyond normal rainfall:

Tropical, monsoon, or high-rainfall climate zones
Coastal or marine-adjacent locations with salt spray
Ground-mounted systems in flood-prone or poorly drained areas
Flat rooftop installations with ponding risk

For standard installations in temperate climates with normal rainfall, IP65-rated connectors provide adequate protection at lower cost.

Understanding IP Ratings

Rating	Dust Protection	Water Protection
IP65	Dust-tight	Protected against water jets from any direction
IP67	Dust-tight	Protected against temporary immersion
IP68	Dust-tight	Protected against continuous submersion
