Product Overview

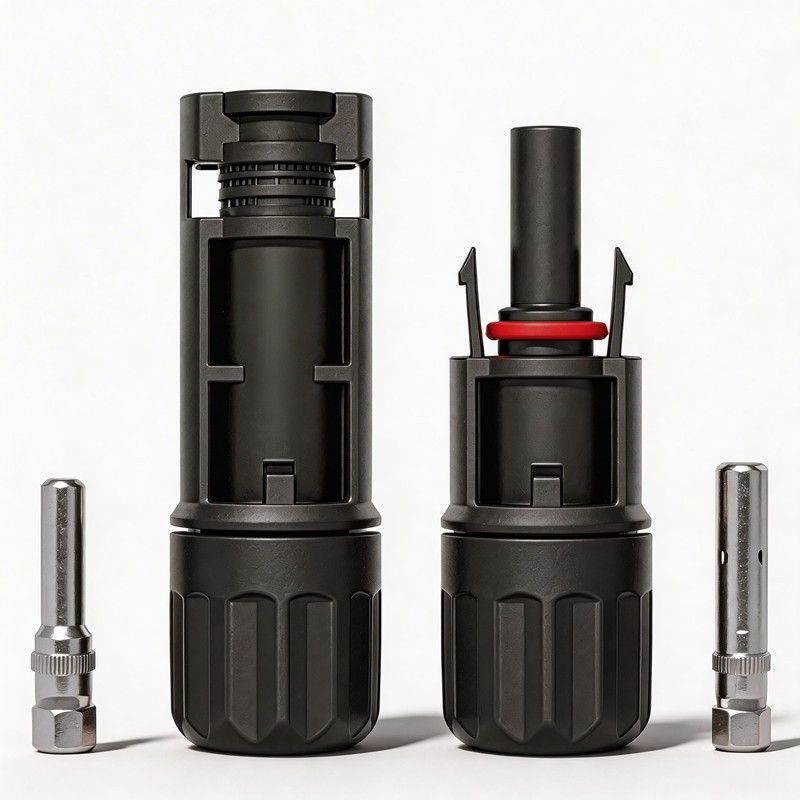

The Male Female MC4 Connector is the universal standard for DC plug-and-play connections in photovoltaic systems worldwide. Virtually every solar panel ships with MC4-compatible leads, and every combiner box, extension cable, and inverter input expects this interface. This connector pair provides the baseline connection that holds the entire DC side of a solar installation together.

Its locking mechanism clicks into place by hand and requires a dedicated tool to disconnect, preventing accidental separation under load. The weatherproof housing seals the contact area against rain, dust, and humidity, supporting reliable outdoor performance across the full service life of the PV system.

Specifications

Parameter	Specification
Connector Type	MC4 male female pair
Rated Voltage	1000V AC/ 1500V DC
Rated Current	30A- 50A (model dependent)
Contact Material	Copper alloy, silver or tin plated
Housing Material	PPO polymer
Protection Rating	IP65/IP67
Temperature Range	-40°C-85°C
Wire Compatibility	2.5–6 mm²/10–14 AWG
Mating Cycles	≥50
Locking	Snap-lock, tool-release

Core Uses

This connector pair is the foundation of DC-side wiring in solar installations. It appears at every connection point where two cables meet in the PV array:

Panel-to-panel series connections within a string
String cable to extension lead connections
Array output to combiner box or inverter input
Pre-assembled cable harness terminations

Because MC4 is the dominant industry standard, using genuine MC4-compatible connectors ensures interoperability with modules and BOS components from virtually any manufacturer.

Application Scenarios

Residential Rooftop Solar

Every residential PV installation uses MC4 connectors, typically dozens of them per system. They connect panels in series, link strings to the home run cable, and terminate at the inverter or rapid shutdown device.

Commercial and Industrial Arrays

Larger systems multiply the connector count. A commercial rooftop with 200 panels may use 400 or more MC4 connections. Reliable contact quality and consistent locking performance across hundreds of connectors directly affects long-term system reliability and maintenance cost.

Pre-Assembled Cable Harnesses

Cable harness manufacturers and system integrators use MC4 connectors to terminate pre-cut and pre-assembled PV cable sets. The standardized interface allows harnesses to be built in the factory and deployed on site with plug-and-play simplicity.

Selection Guide

The standard Male Female MC4 Connector is the right choice for general-purpose PV wiring in systems up to 1500V DC. It is the default connector for residential, commercial, and industrial solar installations using standard module leads and extension cables.

FAQ

Q: Are all MC4 connectors interchangeable?

A: MC4 is a form factor standard. Connectors from different manufacturers are generally physically compatible, but mixing brands can affect contact quality and void warranties. For best results, use matched male and female connectors from the same source.

Q: Do MC4 connectors require special tools?

A: Assembly requires a crimping tool for the contact pin and a spanner wrench for tightening. Disconnection requires an MC4 unlock tool. No special tools are needed for the mating action itself.

Q: How long do MC4 connectors last?

A: Properly installed MC4 connectors are designed for the full 25year service life of a PV system. Contact resistance should remain stable over time if the connector is correctly crimped and the housing seal is intact.
