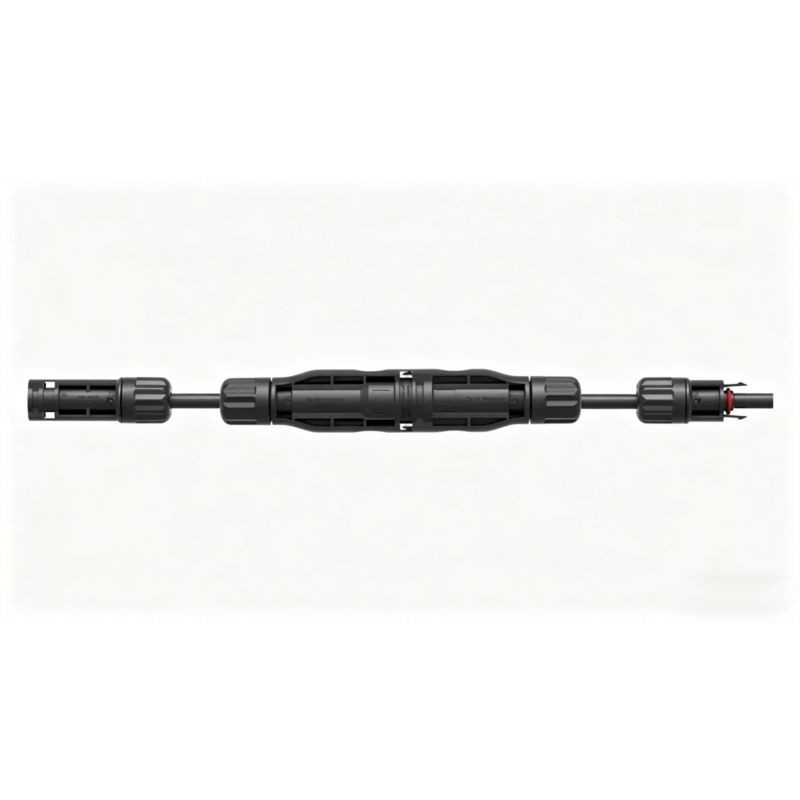

MC4 Fuse Connector

The MC4 Fuse Connector combines cable interconnection and overcurrent protection in one compact component. It is designed for solar DC circuits where individual string protection is required without adding bulky external fuse holders. This connector helps improve system safety while keeping field wiring streamlined and installation-friendly.

Unlike a standard branch connector, the MC4 Fuse Connector adds a protective function directly into the DC cable line. It is commonly used to protect solar strings against reverse current and overcurrent conditions, particularly in parallel string designs. The integrated structure saves space and simplifies field assembly compared with separate fuse holders.

• String-level overcurrent protection
• Reverse current protection in parallel PV circuits
• Solar combiner pre-connection lines
• Rooftop and commercial PV string wiring
• Maintenance-friendly DC protection design

In systems with multiple strings connected in parallel, each string may require fuse protection depending on design rules and current backfeed risk. The MC4 Fuse Connector is often installed on the positive or negative line of each string before entering a combiner box or inverter input section.

When selecting an MC4 Fuse Connector, the most important point is fuse rating. The selected fuse value should match the module series fuse requirement and overall system design. Choosing an oversized fuse weakens protection, while an undersized fuse may cause nuisance failures.

• IEC 62852
• UL 6703
• RoHS compliant materials available
• Suitable for outdoor solar DC applications
