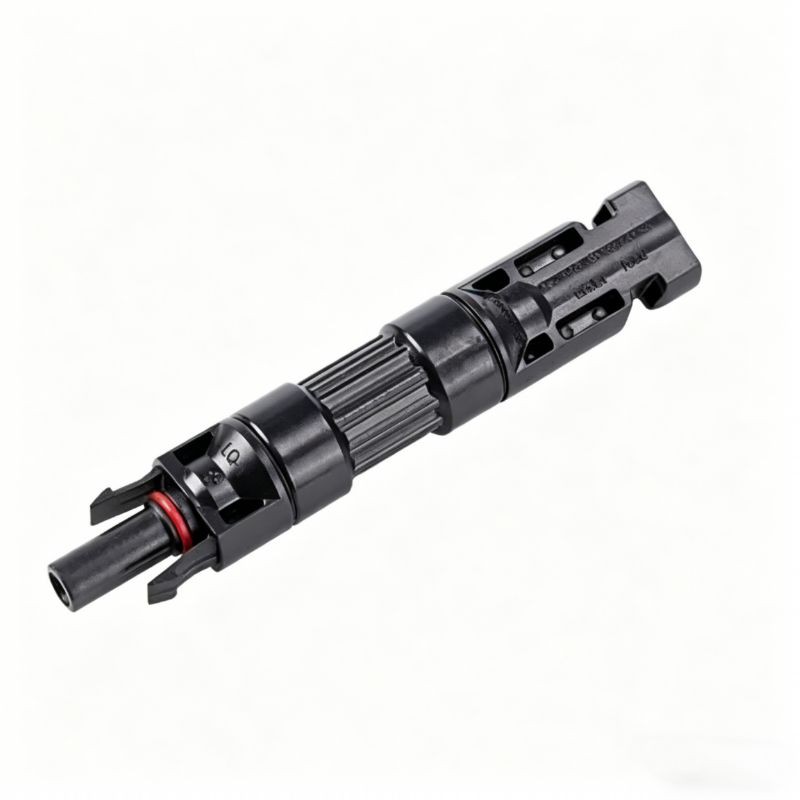

MC4 Diode Connector

The MC4 Diode Connector is a specialized solar connector with an integrated diode function for current control and circuit protection. It is typically used to prevent reverse current flow, isolate strings in specific wiring designs, or support directional electrical behavior in PV applications where standard connectors alone are not sufficient. It offers both the practicality of MC4-style connection and the added electrical function required in more technical system layouts.

The primary role of the MC4 Diode Connector is directional current management. In selected PV circuit designs, this helps block reverse current, improve circuit behavior, and support safer operation under special wiring conditions. It is especially useful where designers need a compact inline solution rather than a separate diode assembly.

• Anti-reverse current protection in PV circuits
• Specialized solar charging or blocking applications
• Small off-grid systems
• Hybrid energy systems with directional DC control needs
• Engineering projects with custom string logic

This is not a general-purpose connector for every solar project. It should be chosen only when the circuit design specifically requires diode functionality. Engineers should confirm current rating, voltage drop impact, heat behavior, and system compatibility before application.

Proper polarity is critical. Incorrect installation may prevent normal current flow or affect system performance. The connector should be installed according to the current direction marked on the product body. Because the diode introduces a functional electrical characteristic, system verification is recommended after installation.
