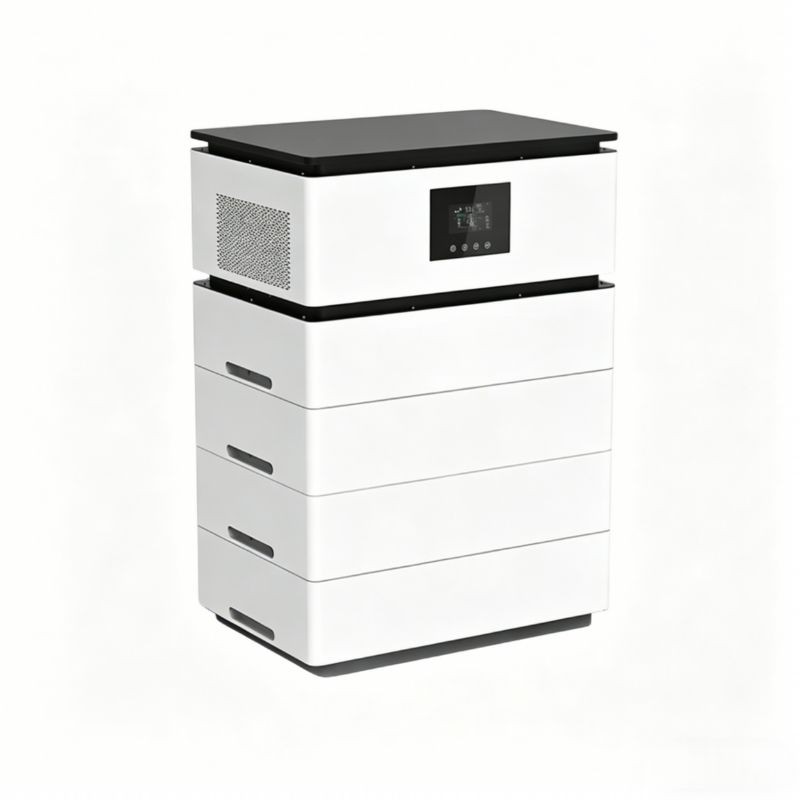

Product Overview
The All in One Home Energy Storage System combines battery modules, hybrid inverter, BMS, protection devices, and monitoring interface in a unified enclosure. It shortens installation time, reduces wiring errors, and gives homeowners a cleaner final result than multi-box systems assembled from separate brands.
For installers, all-in-one systems simplify commissioning. For homeowners, they reduce the technical friction of ownership. One cabinet, one monitoring entry point, one coordinated control strategy.
Technical Specifications
|
Parameter |
Value |
|
Battery Chemistry |
LiFePO4 |
|
Battery Capacity |
5 kWh/10 kWh/15 kWh/20 kWh |
|
Inverter Power |
3 kW/5 kW/8 kW/10 kW |
|
PV Input |
Up to 15 kW depending on model |
|
MPPT Channels |
2/3 MPPT |
|
AC Coupling |
Supported on selected models |
|
EPS / Backup Output |
Supported |
|
Monitoring |
Wi-Fi/Ethernet/APP/Web portal |
|
Protection Grade |
IP54/IP65 optional |
|
Noise Level |
<25 dB typical |
|
Installation |
Floor-standing integrated cabinet |
|
Warranty |
5 years inverter + 10 years battery |
Key Advantages
Faster Installation - With major components pre-integrated at the factory, field wiring is drastically reduced.
Cleaner System Logic - Battery, inverter, and BMS are engineered as one system, improving communication reliability and control consistency.
Better User Experience - Homeowners see one product rather than a cluster of electrical boxes assembled on a wall.
Application Scenarios
New-Build Residential Projects
In new construction, aesthetics and installation speed are both important. An all-in-one ESS fits naturally into garages, utility rooms, and side-building spaces with minimal visual clutter. Builders also benefit from a shorter electrical integration process.
Premium Home Solar Packages
For customers buying a complete premium package rather than chasing the lowest upfront cost, integrated ESS products deliver a stronger ownership experience. The system looks intentional, the app interface is centralized, and service responsibility is easier to define.
Dealer-Friendly Standardized Installations
Installers serving multiple households in the same region often want repeatability. All-in-one units reduce site-by-site variation and allow installation teams to standardize procedures, spare parts, and commissioning workflow.
Selection Guide
● 3–5 kW inverter with 5–10 kWh battery: best for small to mid-size homes with standard single-phase loads.
● 8–10 kW inverter with 10–20 kWh battery: suitable for larger homes, heavier evening loads, and stronger backup expectations.
● If project timing is tight or installer labor costs are high, all-in-one architecture usually improves overall project economics.
Installation Guidance
Place the cabinet on a level, load-bearing surface with clear front service access. Maintain ventilation clearance according to the inverter airflow path. Direct sun exposure should be avoided unless the cabinet is specifically rated for outdoor installation.
