Built as a Faster Project Path

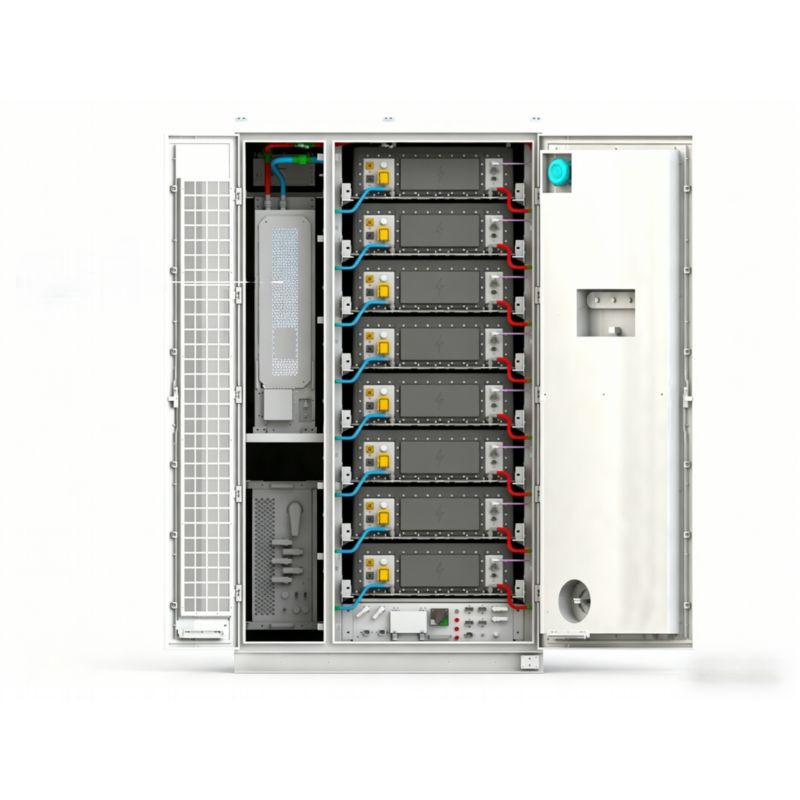

The All in One Commercial Energy Storage Cabinet combines battery packs, PCS, EMS, BMS, switchgear, thermal management, and safety functions into a single integrated platform. It is intended for projects where engineering simplicity, faster deployment, and lower installation coordination are more important than highly customized system architecture.
For EPC contractors and distributors, this integrated design shortens procurement cycles and reduces interface risk between battery supplier, inverter supplier, and control platform. For end users, it means fewer components on site, a cleaner installation process, and a faster route from delivery to commissioning.
Main Specifications
|
Parameter |
Value |
|
Battery Capacity Options |
100 kWh/215 kWh/261 kWh |
|
Integrated PCS |
50 Kw/100 kW/125 kW |
|
Battery Chemistry |
LiFePO4 |
|
AC Output Voltage |
400V/480V, 3P+N+PE |
|
System Efficiency |
Up to 89% AC-AC |
|
Grid Modes |
Grid-tied/Off-grid/Hybrid |
|
Protection Degree |
IP54/IP55 |
|
Cooling |
Air cooling or liquid cooling by configuration |
|
EMS Functions |
Peak shaving, TOU shifting, PV priority, backup |
|
Communication |
Modbus RTU/TCP, CAN, Ethernet, optional 4G |
|
Fire Protection |
Integrated detection and suppression |
|
Parallel Capability |
Supported |
|
Standards |
IEC 62477, IEC 62619, CE, UN38.3 |
Core Uses
Turnkey Solar-Storage Deployment
Because major electrical and control functions are integrated in one cabinet, project teams can avoid the usual coordination burden of matching batteries, PCS, EMS, breakers, and communication settings from multiple vendors.
Cleaner Upgrade Path for Existing Buildings
Retrofit projects often have limited space and limited tolerance for prolonged electrical works. An all-in-one platform reduces cable runs, panel modifications, and on-site assembly time.
Simplified O&M
A unified HMI and monitoring logic makes fault tracing easier. Operators can review battery status, inverter performance, alarms, and dispatch strategy from one interface rather than from several independent systems.
Typical Application Scenarios
Commercial Buildings with Tight Timelines
A shopping center planning to open a new annex may not want a long energy system integration phase. The all-in-one cabinet gives the EPC team a shorter path to energization, with fewer subcontractor touchpoints and a more predictable commissioning process.
Distributed Rollout Programs
For integrators deploying the same storage solution across chain stores, branches, or franchise locations, a standardized all-in-one cabinet reduces engineering variation between sites. This improves training, spare-part management, and rollout speed.
Backup-Ready Solar Retrofits
Office buildings, clinics, schools, and service centers often want to add battery backup while preserving daytime solar savings. An all-in-one platform offers a practical route because switching logic, battery control, and inverter functions are already coordinated inside the unit.
Quick Selection Notes
• Choose an all-in-one cabinet when deployment speed and lower integration complexity are top priorities.
• It is especially suitable for retrofit projects where civil works and switchroom modifications should be minimized.
• For heavily customized C&I microgrids with multiple generation sources and site-specific dispatch logic, a separated battery plus PCS architecture may still be preferable.
Installation Guidance
Installation typically requires foundation preparation, AC and communication cable routing, grounding, and grid/PV interface confirmation. Since the PCS and control sections are integrated, on-site wiring is simpler than with split systems. Commissioning time is often reduced to one working day after final electrical checks.
